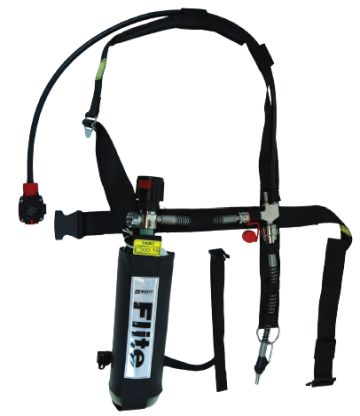

3M Flite COV



3M's FLITE COV is a positive pressure Supplied Air Respirator that also provides emergency respiratory protection and escape capability allowing the user to enter hazardous atmospheres including those identified as immediately dangerous to life or health (IDLH).

If needed, the switch to the emergency air supply cylinder is accomplished by an automatic change over valve greatly simplifying response to a stressful situation.

Product Highlights

  In the event of an interruption of air flow from the primary supply source switchover to emergency cylinder air supply is immediately activated by the automatic change over valve to facilitate safe egress. Warning whistle informs user switch has been made to cylinder air.
  Combined cylinder and pressure reducing valve features a locking hand wheel that remains locked in the open position against inadvertent shutting and a pressure gauge.
  Compressed air steel cylinders are provided in 10 and 15 minute durations with a 10 minute superlight carbon composite version also offered.
  CEN type coupling as standard; other connections available.
  Features the time-proven Scott Tempest Demand Valve with low inspiratory resistance, automatic first breath activation and responsive dynamic performance
  The unit is comfortable and extremely simple to operate and maintain
  The FLITE COV meets all requirements and is certified to current EN 14593-1:2005 and EN 402:2003 standards (AS/NZS1716:2012)

3M Flite COV

DOWNLOADS


Datasheet

Ordering Information


2031077 FLITE (COV)
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, change over valve, supply hose and pigtail with CEN coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

2031078 FLITE-FOST (COV)
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, change over valve, supply hose and pigtail with Foster/ Hansen Mil spec male coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

2031079 FLITE-HANSENHK (COV)
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, change over valve, supply hose and pigtail with Hansen HK spec male coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

2031080 FLITE-STAUBLI (COV)
Airline breathing apparatus comprising Tempest automatic positive pressure demand valve, change over valve, supply hose and pigtail with Staubli spec male coupling, bandolier harness and facility to connect escape cylinder.
Apparatus weight 1.9kg

FLITE CYLINDERS

CYL-FLITE-10 (COV)
2.0 litre, 200 bar cylinder for FLITE apparatus with combined cylinder valve with locking handwheel and regulator, giving a rated duration of 10 minutes*. The steel cylinder is to CE specification and comes complete with pouch and connection hose to apparatus. (Cylinder capacity 400 litres)
Fully charged weight 3.5kg

2031535 CYL-FLITE-10 (COV) Full

2031536 CYL-FLITE-10 (COV) Empty

CYL-FLITE-15 (COV)
3.0 litre, 200 bar cylinder for FLITE apparatus with combined cylinder valve with locking handwheel and regulator, giving a rated duration of 15 minutes*. The steel cylinder is to CE specification and comes complete with pouch and connection hose to apparatus. (Cylinder capacity 600 litres)
Fully charged weight 5.6kg.

2031537 CYL-FLITE-15 (COV) Full

2031538 CYL-FLITE-15 (COV) Empty

CYL-FLITE-SL (COV)
2.0 litre, 300 bar superlight carbon fibre composite cylinder with combined cylinder valve with locking handwheel and regulator, giving a rated duration of 15 minutes*. The cylinder is to CE specification and comes complete with pouch and connection hose to apparatus. (Cylinder capacity 540 litres)
Fully charged weight 2.3kg.

2031539 CYL-FLITE-SL (COV) Full

2031540 CYL-FLITE-SL (COV)

* Duration calculated using an average wearer consumption rate of 35 litres per minute as per EN402. Rated durations are increments of 5 minutes as per EN402.
Please specify whether cylinders are to be supplied FULL or EMPTY
Charged cylinders are classed as hazardous and may not be sent by certain types of carriage.
Cylinders may be supplied in accordance with other national specifications.


ADDITIONAL EQUIPMENT

2031603 2031603 Spare cylinder pouch for CYL-FLITE-10
2031604 2031604 Spare cylinder pouch for CYL-FLITE-15.
2031605 2031605 Spare cylinder pouch CYL-FLITE-SL
2010722 2010722 Flite fast fill adaptor
1034988 084.213.00 User instruction manual.
1034745 084.059.01 Breathing apparatus log book - Industrial version.
1035996 089.386.00 Testkit and toolkit.
1035997 089.386.01 FLITE Testkit only.
1034008 074.293.00 Toolkit only.
2004229 018.008.99 Charging adaptor handwheel and liner to suit 207 bar EN144-2 cylinder valves. 1/4" BSP male thread
1017527 010.125.00 Injection moulded storage/carrying case. Shock proof and water resistant. Dimensions: 510 x 430 x 210mm



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
