3M Spyglass Open Path Combustible Gas Detector



  Three color LED gives a quick visual of unit status
  Intrinsically Safe communication port can be used with HART® Hand-Held in non-safe areas for setup and diagnostics
  Heated optics provide unfettered Detection in most environments
  Long Range reduces number of units required
  Fast response
  (<3 seconds) gives
  Quick alert to hazards
  Low maintenance requirements saves time and money
  Multiple regulatory approvals
  Connects easily to existing systems
  User programmable functions allow customization
  Event recorder keeps track of all alerts and warnings
  High reliability and a threeyear warranty provide peace of mind

The 3M SPYGLASS Open Path Detector is an innovative, next generation solution to open path combustible gas detection. It can replace multiple point detectors, detects multiple gases at once, and is durable, proving to be a smart, cost efficient choice for combustible gas detection.

Save costs in line-of-sight applications

One 3M SPYGLASS Open Path Detector can replace up to 20 point combustible gas detectors in line-of-sight applications, saving installation and ongoing maintenance costs. With the SPYGLASS there are only two units to service and the maintenance requirements are minimized compared with point detectors. Additionally, there is only one consumable to replace periodically; SPYGLASS Xenon Flash Bulb has a 10 year warranty.

Detect multiple combustible gases simultaneously

The SPYGLASS IR sensor can detect multiple combustible hydrocarbon gases at the same time-perfect for facilities with multiple hydrocarbon gases to monitor, such as C1-C8 hydrocarbons (Methane, Ethane, Ethylene, Propane, Propylene, n-butane, Isobutane, 1, 3-butadiene, Isobutylene, Alkanes, Alkenes, Naphthenes, Benzenes).

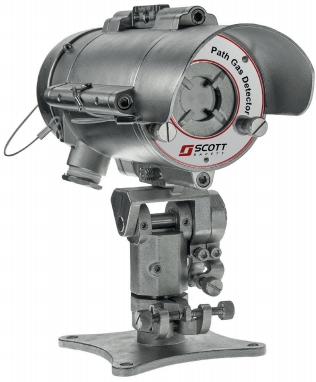

Spyglass Open Path Combustible Gas Detector

Handle tough environments with confidence, longer

Robustly designed to handle the toughest work environments and maintain a long operating life, the SPYGLASS Open Path Gas Detector is equipped with 316L stainless steel casings and mounts, coated circuit boards for protection, and is SIL-2 approved per IEC61508. Additionally, the SPYGLASS detector meets MIL-C-810C standards for humidity, salt, fog, vibration, mechanical shock and temperature extremes, while the housings meet IP66, IP68 and NEMA 250 6P water and dust egress standards.

DOWNLOADS


Datasheet

Ordering Information


Spyglass Systems

8000481 Spyglass Model 20 System (7-20 m Range), ATEX, M25
8000482 Spyglass Model 20 System (7-20 m Range), ATEX, 3/4" NPT
8000483 Spyglass Model 20 System (7-20 m Range), FM, M25
8000484 Spyglass Model 20 System (7-20 m Range), FM, 3/4" NPT
8001125 Spyglass Model 20 System (7-20 m Range), INMETRO, 3/4" NPT
8000485 Spyglass Model 40 System (15-40 m Range), ATEX, M25
8000486 Spyglass Model 40 System (15-40 m Range), ATEX, 3/4" NPT
8000487 Spyglass Model 40 System (15-40 m Range), FM, M25
8000488 Spyglass Model 40 System (15-40 m Range), FM, 3/4" NPT
8001127 Spyglass Model 40 System (15-40 m Range), INMETRO, 3/4" NPT
8000489 Spyglass Model 100 System (35-100 m Range), ATEX, M25
8000490 Spyglass Model 100 System (35-100 m Range), ATEX, 3/4" NPT
8000491 Spyglass Model 100 System (35-100 m Range), FM, M25
8000492 Spyglass Model 100 System (35-100 m Range), FM, 3/4" NPT
8001129 Spyglass Model 100 System (35-100 m Range), INMETRO, 3/4" NPT
8000493 Spyglass Model 200 System (80-200 m Range), ATEX, M25
8000494 Spyglass Model 200 System (80-200 m Range), ATEX, 3/4" NPT
8000495 Spyglass Model 200 System (80-200 m Range), FM, M25
8000496 Spyglass Model 200 System (80-200 m Range), FM, 3/4"NPT
8001131 Spyglass Model 200 System (80-200 m Range), INMETRO, 3/4" NPT

*Systems includes: Source, Detector and 2 Tilt Mounts

Accessories

8000447 Tilt Mount
8000448 Pole Mount (U-Bolt 5 inch)
8000449 Commissioning Kit
8000451 HART Hand-Held Diagnostic Unit
8000452 HART Hand-Held Harness Kit
8000453 USB/RS485 Harness Converter Kit
8000455 Sunshade, Stainless Steel
8000456 Telescope Kit
8000457 Function Check Filter Warning Level - Methane Calibration
8000458 Function Check Filter Alarm Level - Methane Calibration
8000459 Function Check Filter Warning Level - Propane Calibration
8000460 Function Check Filter Alarm Level - Propane Calibration
8000497 Magnetic Mode Selector
8000756 NA SPYGLASS SALES DEMO KIT
8000758 EU SPYGLASS SALES DEMO KIT
8000757 SA SPYGLASS SALES DEMO KIT

Spyglass Spares

8000461 Spyglass Detector , ATEX, M25
8000462 Spyglass Detector , ATEX, 3/4" NPT
8000463 Spyglass Detector , FM, M25
8000464 Spyglass Detector , FM, 3/4" NPT
8000465 Spyglass Model 20 Source (7-20 m Range), ATEX, M25
8000466 Spyglass Model 20 Source (7-20 m Range), ATEX, 3/4" NPT
8000467 Spyglass Model 20 Source (7-20 m Range), FM, M25
8000468 Spyglass Model 20 Source (7-20 m Range), FM, 3/4" NPT
8000469 Spyglass Model 40 Source (15-40 m Range), ATEX, M25
8000470 Spyglass Model 40 Source (15-40 m Range), ATEX, 3/4" NPT
8000471 Spyglass Model 40 Source (15-40 m Range), FM, M25
8000472 Spyglass Model 40 Source (15-40 m Range), FM, 3/4" NPT
8000473 Spyglass Model 100 Source (35-100 m Range), ATEX, M25
8000474 Spyglass Model 100 Source (35-100 m Range), ATEX, 3/4" NPT
8000475 Spyglass Model 100 Source (35-100 m Range), FM, M25
8000476 Spyglass Model 100 Source (35-100 m Range), FM, 3/4" NPT
8000477 Spyglass Model 200 Source (80-200 m Range), ATEX, M25
8000478 Spyglass Model 200 Source (80-200 m Range), ATEX, 3/4" NPT
8000479 Spyglass Model 200 Source (80-200 m Range), FM, M25
8000480 Spyglass Model 200 Source (80-200 m Range), FM, 3/4"NPT



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
