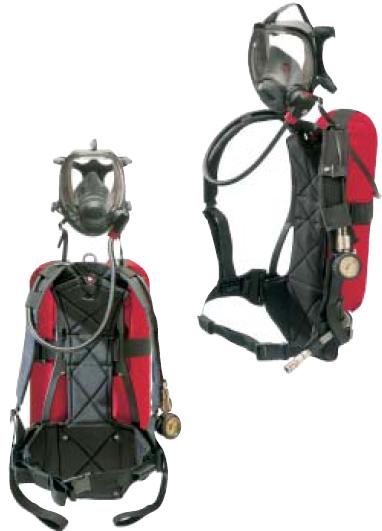

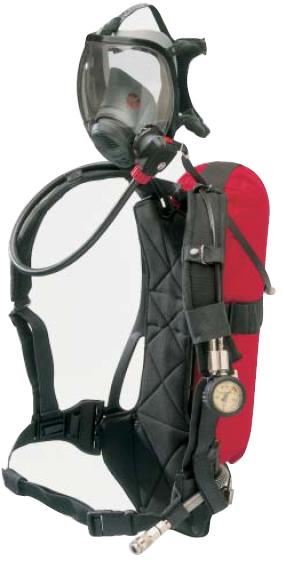

3M Contour 300 & Contour 500



Selected by the UK Design Council as a Millennium Product, The Contour incorporates innovation and creativity in design and application, maintaining 3M's reputation for being at the forefront of breathing apparatus design and manufacture for over 30 years.

Providing operational flexibility and upgrade-ability, the Contour features exceptional levels of comfort, reliability and maintainability.

With both the single cylinder Contour 300 and the twin cylinder capable Contour 500 versions, 3M has a breathing apparatus to meet the professionals' most exacting requirements, which reflects 3M's stated philosophy to produce equipment customers wear by choice, not just necessity.

BACKPLATE AND HARNESS

At the heart of the 3M Contour is the lightweight composite backplate. The ergonomic shape provides optimal load distribution and balance, with minimal profile to allow ease of movement. As well as the pivoting side arms providing excellent lateral support, the backplate is designed to flex, providing a high degree of mobility.

The impact resistant polyamide composite material is both anti-static and non-conductive.

The Contour 300 backplate features a single cylinder retainer, whereas the Contour 500 model has a second support to allow twin cylinder use in conjunction with a high pressure manifold.

The fully adjustable 100% Kevlar cylinder band features a unique over centre catch with a safety locking feature.

Uniquely, the hoses are channelled along the inside of the backplate to prevent damage and minimise snag hazards.

The 3M Contour 300 and 500 both feature a harness constructed from Kevlar/Nomex materials and feature closed cell foam padding. Both backplates utilise materials that exceed the heat and flame requirements of NFPA 1981, as well as EN137 Class 3.

The Contour 500 harness features a fulllength backpad as standard, as well as wraparound hose retainers.

These facilitate the attachment of the latest electronic systems and simplify the removal of the pneumatic assembly.

PNEUMATICS

The proven pneumatic system features a simple and fail safe spring loaded piston reducer, containing only seven components including an internal pressure relief valve.

Fully user serviceable, it offers low service and maintenance costs.

The reducer incorporates a protected medium pressure port allowing the connection of airline decontamination or RSM attachments.

All hose connections feature 3M's U-clip/O-ring design, offering reliable and simple maintenance. Different high and medium pressure connections ensure foolproof assembly.

Contour 500 apparatus feature an additional high pressure port to accept fast fill charging or to facilitate the integration of electronic monitoring systems.

The shoulder mounted robust, luminous pressure gauge and whistle features swivel hose fittings for easy wearer access.

DOWNLOADS


Product Literature
Product Literature (Spanish)
Spare Parts List


Product Datasheet


FACEMASKS

The Contour is available with the full range of 3M masks, including the latest Vision 3 or traditional PanaSeal and PanaVisor types. All masks are constructed from nondermatitic silicone, Neoprene or TPE materials.

Coated polycarbonate visors provide resistance to most common chemicals and provide facial impact protection. Suitable for use with the latest low-profile helmets, both elasticated net harnesses or integrated helmet clamps are also available.

All 3M masks feature a low profile, bayonet side fitting connecting the demand valve for superior verbal communication. The Vision mask's unique shape also provides excellent peripheral vision.

DEMAND VALVE

The Tempest automatic positive pressure demand valve is a further development of the ultracompact design, pioneered by 3M. It features low breathing resistance and unsurpassed dynamic response, combined with peak flow performance in excess of 600 litres/minute.

As well as first breath actuation and a hands-free bypass facility, the valve features a unique, fail-safe servo-mechanism.

In common with all 3M's pneumatic systems, the Tempest provides the benefits of full user servicing with proven reliability and low through-life costs.


PART NUMBERS

  1045577 CTR-300 Contour self contained breathing apparatus for single cylinder use, comprising light weight anti-static composite backplate with Kevlar cylinder band and fully adjustable padded body harness.
Two stage pneumatic system comprising Tempest automatic positive pressure demand valve with bypass, shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure cylinder connector.
Harness fabricated from 50% Kevlar blend material and apparatus features a half lumbar pad. Apparatus accepts full range of Scott breathing apparatus cylinders from 4 7 to 11 0 litres capacity, 200 or 300 bar.
Apparatus is CE Marked to EN137:2006 Class I.
Apparatus supplied less facemask, please order desired mask separately.

  1045583 CTR-310 Apparatus as above except with CEN decontamination attachment

  1045595 CTR-320 Apparatus as above except with CEN airline attachment. Apparatus CE marked to EN 139

  2014030 2014030 Apparatus as above except with Foster/Hansen mil spec airline attachment please note this varient includes full backpad (CTR-320-F-foster/hansen mil spec).

  1045607 CTR-330 Apparatus as above except with CEN rescue/second mask attachment

  1045619 CTR-500 Contour self contained breathing apparatus for single or twin cylinder use, comprising light weight antistatic composite DUO backplate with Kevlar cylinder band and fully adjustable padded body harness.
Two stage pneumatic system comprising Tempest automatic positive pressure demand valve with bypass, shoulder mounted pressure indicator and 55 bar warning whistle.
First stage extended pressure reducer with ancillary high pressure port and single high pressure cylinder connector Harness fabricated from 50% Kevlar blend material and featuring full length back pad.
Apparatus accepts full range of Scott breathing apparatus cylinders from 4 7 to 11 0 litres capacity, 200 or 300 bar, in single cylinder configuration or two carbon fibre composite cylinders in DUO configuration.
If the apparatus is to be used in a DUO configuration a separate twin cylinder manifold will be required, please order from manifold section
Apparatus is CE Marked to EN137:2006 Class I
Apparatus supplied less facemask, please order desired mask separately.

  1045624 CTR-510 Apparatus as above except with CEN decontamination attachment

  1045632 CTR-520 Apparatus as above except with CEN airline attachment. Apparatus CE marked to EN 139

  2006596 CTR-530 Apparatus as above except with CEN rescue/second mask attachment

  Contour 300 NATO Stock Number (NSN) 4240-99-454-2279

  CYL-FWC 1800 NATO Stock Number (NSN) 8120-99-811-2885

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
