Scott Cylinders

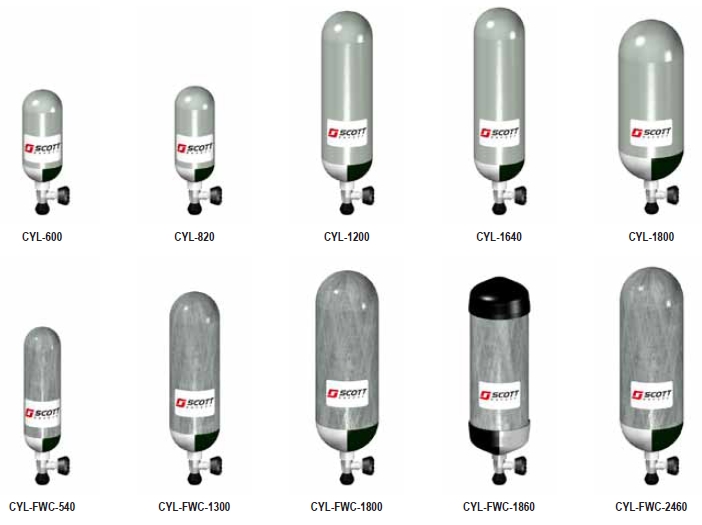

3M manufacture various steel and carbon fibre cylinders for use with breathing apprataus.

These include:

STEEL CYLINDERS

  1045898 CYL-600 3.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 600 litre free air capacity providing total duration of 15 minutes*.
For use with CEN-PAQ apparatus only. Dimensions: 110mm diameter x 375mm long. Fully Charged
Weight - 5kg

  1045920 CYL-820 3.0 litre, 300 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 820 litre free air capacity providing total duration of 20 minutes*.
For use with CEN-PAQ apparatus only. Dimensions: 110mm diameter x 385mm long. Fully Charged
Weight - 5 75kg

  1045790 CYL-1200 6.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1200 litre free air capacity providing total duration of 30 minutes*.
Dimensions: 140mm diameter x 600mm long. Fully Charged Weight - 8.8kg
For cylinder to be used with ACS please add suffix -RA

  1045831 CYL-1640 6.0 litre, 300 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1640 litre free air capacity providing total duration of 41 minutes*.
Dimensions: 140mm diameter x 610mm long. Fully Charged Weight - 11.9kg
For cylinder to be used with ACS please add suffix -RA

  1045856 CYL-1800 9.0 litre, 200 bar, steel cylinder, CE specification, painted to BS specification, complete with cylinder valve fitted with safety locking handwheel. 1800 litre free air capacity providing total duration of 45 minutes*.
Dimensions: 180mm diameter x 575mm long. Fully Charged Weight - 13.0kg
For cylinder to be used with ACS please add suffix -RA

CARBON FIBRE CYLINDERS

  1046044 CYL-FWC-540 2.0 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel 540 litre free air capacity providing total duration of 13 5 minutes*
For use with CEN-PAQ apparatus only. Dimensions: 105mm diameter x 460mm long. Fully Charged
Weight - 2 6kg
For cylinder to be used with ACS please add suffix -RA

  1045978 CYL-FWC-1300 4.7 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel 1300 litre free air capacity providing total duration of 32 minutes*
Dimensions: 136mm diameter x 576mm long. Fully Charged Weight - 5.2kg
For cylinder to be used with ACS please add suffix -RA

  1046000 CYL-FWC-1800 9.0 litre, 207 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel 1800 litre free air capacity providing total duration of 45 minutes*
Dimensions: 172mm diameter x 630mm long. Fully Charged Weight - 6.8kg
For cylinder to be used with ACS please add suffix -RA

  1046013 CYL-FWC-1860 6.8 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel 1860 litre free air capacity providing total duration of 46 minutes*
Dimensions: 160mm diameter x 600mm long. Fully Charged Weight - 7.1kg
For cylinder to be used with ACS please add suffix -RA

  1046030 CYL-FWC-2460 9.0 litre, 300 bar, carbon fibre fully wrapped aluminium composite cylinder, CE specification, cylinder design life 15, years complete with cylinder valve incorporating safety locking handwheel 2460 litre free air capacity providing total duration of 61 minutes*
Dimensions: 178mm diameter x 640mm long. Fully Charged Weight - 8.8kg
For cylinder to be used with ACS please add suffix -RA

* Duration calculated using an average wearer consumption rate of 40 litres per minute
All cylinder weights are approximate and may vary by 0.3kg.
Please specify whether cylinders are to be supplied FULL or EMPTY - NOTE - Article numbers refer to full cylinders Charged cylinders are classed as hazardous and may not be sent by certain types of carriage.
Please check with customer services for carriage details.
Cylinders may be supplied in accordance with other national specifications.
Please note currently only CYL-FWC-1860ís are supplied with rubber boots.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
