Analox AX60+ Multi Gas Mointor for Laboratories



The Analox Ax60+ multi-gas monitor... because plus is more.

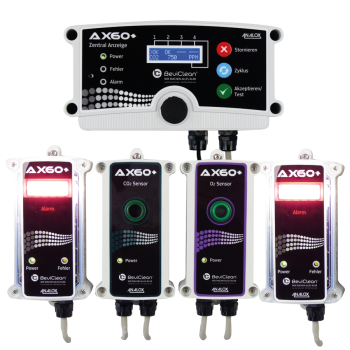

The Ax60+ is a wall-mountable multi gas monitor for detecting carbon dioxide with an option for monitoring oxygen available now.

Based on the popular Ax60 CO2 detector, the new Ax60+ multi gas monitor offers the additional functionality of being able to add modular sensors, creating a fully flexible solution.

The CO2 sensor is set by default to trigger a low-level alarm at 1.5% CO2, an evacuation alarm at 3% CO2 and a time-weighted average alarm (TWA) of 0.5% CO2 measured over eight hours. Alarm set-points can be fully customised by the user to adhere to specific local regulations.

The O2 sensor available to order now, provides an early warning of both oxygen depletion and oxygen enrichment.

The O2 sensor is set by default to trigger low-going alarms at both 19.5% and at 18% and a high-going alarm at 23%. The alarm setpoints can be changed by the user. Warnings are announced by high-visibility strobe lights and high-volume sounders.

The CO2 and O2 sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system.

The Analox Ax60+ CO2 detector is available to order now . If you'd like more information on our O2 sensor variant and to find out more about our newest monitor, please contact us.


Datasheet
Manual


Key Features

  Multi-point, multi-gas, distributed monitoring system
  4-channel flexibility allowing any sensor combination - both now and in the future
  Central display unit for remote operation and control
  User-configurable alarms, setpoints and relay outputs
  Built-in software for operation and maintenance tasks
  Relay 'failsafe options'
  Improved accuracy and calibration for CO2 channels
  Meets TUV, DIN, NFPA, IFC and OSHA requirements
  Up to five year graded O2 sensor warranty and 5 year electronics warranty
  Virtually maintenance free
  The Ax60+ has 2 built in relays as standard.

Ordering Information


AX60 + Packages

AP1 - Analox Ax60+ Package 1
AP2 - Analox Ax60+ Package 2

Central Units

AX60CDSNYA Ax60+ Central Display Unit, Hard wired connection, Hard wired PSU.
AX60CUQYXA Ax60+ Central Display Unit, Quick Connect, Uni PSU, inc cable.
AX60CUSYXA Ax60+ Central Display Unit, Hard wired, Uni PSU, inc cable.

Sensor Units

AX60SAQYA Ax60+ CO2 Sensor Unit, Quick Connect, inc cable.
AX60SASYA Ax60+ CO2 Sensor Unit, Hard wired, inc cable.
AX60SCQYA Ax60+ O2 Sensor Unit, Quick Connect, inc cable.
AX60SCSYA Ax60+ O2 Sensor Unit, Hard wired, inc cable.

Alarm Units

AX60RQYAA Ax60+ Alarm, Quick Connect, Red Strobe, inc cable.
AX60RQYBA Ax60+ Alarm, Quick Connect, Blue Strobe, inc cable.
AX60RQYCA Ax60+ Alarm, Quick Connect, White Strobe, inc cable.
AX60RQYDA Ax60+ Alarm, Quick Connect, Amber Strobe, inc cable.
AX60RSYAA Ax60+ Alarm, Hard wired, Red Strobe, inc cable.
AX60RSYBA Ax60+ Alarm, Hard wired, Blue Strobe, inc cable.
AX60RSYCA Ax60+ Alarm, Hard wired, White Strobe, inc cable.
AX60RSYDA Ax60+ Alarm, Hard wired, Amber Strobe, inc cable.

AX60+ and AX60 Spares and Accessories

1558-5200 15m Quick Connect Cable.
2553-0015 Blue xenon beacon, 12/24V DC, low power.
8000-9008 Splashguard (If ordered separately then minimum order of 10) *MOQ10*
9300-5500 Ax60+ RJ45 Inline Coupler.
9300-5600 Ax60+ Modular T-adaptor (f).
AX60CO2CALKIT CO2 Calibration Kit for Ax60+ (For 3% CO2 range instruments): 110L 100% N2, 110L-3%CO2/N2, Regulator, Neoprene Tubing, Push in adaptor.
AX60CO2CHECKKIT CO2 Alarm Check Kit for Ax60+ (For Alarms of 1.5% and 3.0%): 110L 1.60% CO2, balance N2, 110L 3.2% CO2, balance N2, Regulator, Neoprene tubing, Push in adaptor.
AX60CO2O2CALKIT CO2 & O2 Calibration kit for AX60+ (For 3% CO2 range instruments): 110L 100% N2, 110L-3%CO2/N2, 110 Pure Air 110 Litre Pure Air?, Regulator, Neoprene Tubing, Push in adaptor.
AX60CO2O2CHECKKIT CO2 & O2 Alarm check kit for AX60+ (For CO2 Alarms of 1.5% and 3.0%): 110L 1.60% CO2, balance N2, 110L 3.2% CO2, balance N2, 110L 100% N2, 110L 23.5%O2 BAL N2+/- 2% TOLERANCE, Regulator, Neoprene tubing, Push in adaptor.
AX60O2CALKIT O2 Calibration Kit for Ax60+ (For 25% O2 range instruments): 110L 100% N2, 110L Pure Air, Regulator, Neoprene tuning, Push in adaptor.
AX60O2CHECKKIT O2 Alarm Check Kit for Ax60+ (For Low going Alarms of 18% and 19.5% and high going alarm of 23%): 110L 100% N2, 110L 2.3% O2 balance N2, Regulator, Neoprene tubing, Push in adaptor.
LFO2-A4/S Spare Ax60+ oxygen sensor (inc gasket & spare label).
P0159-4120-EN/DE/ES/SE/ZH Ax60+ CO2 Signage Pack
P0159-4150-EN/DE/ES/SE/ZH Ax60+ O2 Signage Pack
P0159-4305K Ax60+ Protector Kit: Includes protector bar, splashguard & fixing kit.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
