Analox MEC Oxygen Sensor

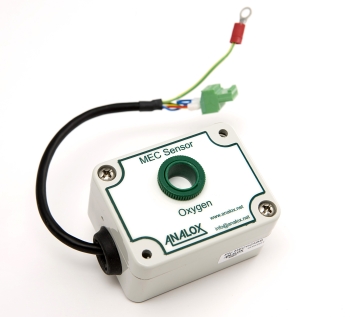

The Analox MEC Oxygen Sensor has been inspired by the proven 9212 range of electrochemical oxygen sensors.

The principal of electrochemical galvanic action is used by the cells to operate. This produces an electrical current proportional to the absorption of oxygen through a Teflon membrane.

The partial pressure of oxygen present is proportional to the absorption rate.

The sensor output is virtually immune to cross interference, as neither the membrane or partial pressure of oxygen are affected by the majority of most other gases.

The 9212 series sensor within the Analox MEC Oxygen Sensor and the Analox MEC Oxygen Sensor itself are both field replaceable, which helps give them a long life expectancy and make them very cost effective for the monitoring of oxygen.



Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
