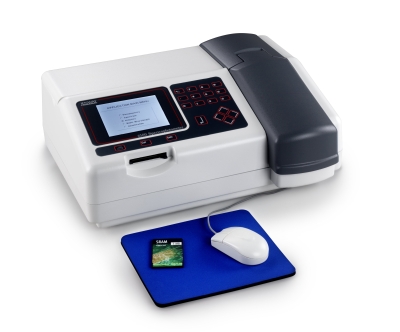

Bibby Scientific 6500 & 6505 Scanning Spectrophotometers


Please note - this product is now obsolete. Please click here for the current models.

  High performance split beam optics

  1.8nm bandwidth

  Spectral addition and subtraction

  1st-4th derivative and post scan analysis

  Method and results storage

  Application and data storage cards

The 6500 series are multi-capability scanning spectrophotometers designed to provide the user with a high quality system which offers all the features required by a scientist to manipulate and process spectral information.

The Model 6500 Visible range unit operates at 320-1100nm. The Model 6505 UV/Visible range unit operates at 190-1100nm.

A customised LCD gives a clear readout of calibration data, sample data and all set-up options.

Simple keypad layout and operating protocols facilitates the setting of experimental parameters and initiating sample analysis procedures.

Graphical user interface (GUI) allows interactive control of all operating parameters. Both keypad and mouse operation are fully supported.

Multi-language capability allows screen instructions to be presented in a choice of English, French, German, Italian, Portuguese and Spanish.

Five operating ranges are available - photometrics, spectrum, kinetics, multi-wavelength and quantitation. Full kinetics capability allows, usually in conjunction with the peltier cell block, full analysis of timed reactions.

Calibration curves producing non-linear results can also be accommodated using in-built software. Up to twenty data points (standards), or up to seven when using the multi-cell changer, can be determined automatically and used to construct a calibration curve. A variety of statistical methods are available to ensure a close correlation to all curve shapes.

Full scanning capability allows scan range, speed and resolution to be user adjusted and the resultant scan to be auto scaled for enhanced visibility. Peaks and valleys are labelled with wavelength and absorbance values and can be readily down loaded to the optional internal printer, to a PC or a Centronics printer. A cursor facility allows the user to interrogate specific parts of the scanned data.

A versatile sample compartment is fitted to the instrument to house the full range of accessories developed for the 6500 series.


Data Sheet
Manual



An integral printer module is available and can be supplied as a factory fitted item at the time of ordering the product or as a customer installable module.

Full interfacing capability using RS232 interfacing or an analogue output is provided as standard. Utilising the RS232 facility allows results to be down loaded via the front panel print key.

Both models incorporate a bi-directional interface allowing remote operation, calibration and interrogation by an external computer.

An automatic results log allows readings to be stored in a data file either when the print key is pressed; at a user defined set time interval or by a multiple sample assay using the 8 position cell holder. Data files have a user entered ID and can be saved in internal memory or to an external data card. Results saved in internal memory can be transferred to an external data card.

Method storage allows all user set parameters to be saved against a user identification. A method can be subsequently recalled which configures the instrument to the saved parameters. The instrument settings for a recalled method can be altered and subsequently saved against the same or a different method identification. Methods can be saved in internal memory or to an external memory card. Methods saved in internal memory can be transferred to an external data card. The instruments memory has the capacity to store a minimum of fifty methods.

Traceable calibration standards provide the on-going assurance of accuracy required by Good Laboratory Practice (G.L.P.). A user set identification number (up to 20 digits in length) is entered and will be shown on any printouts produced by the instrument. In addition, each printout will show sample number, reading, unit of measurement, the wavelength analysis and the current time and date. Scans and concentration curves stored will also be time and date stamped. The 6500 series complies fully with EEC and US directives relating to ESD/EMC emission and susceptibility.

Ordering Information

650 001 - Model 6500 split beam Visible range spectrophotometer (320-1100nm) (without printer) supplied with 230V un-terminated mains lead, serial mouse, mouse mat, pack 100 (3.5ml) disposable cuvettes, 8 position multi-cell changer and instruction manual. For use on 230V/50Hz

650 031 - Model 6500 split beam Visible range spectrophotometer (320-1100nm) (without printer) supplied with US line cord, serial mouse, mouse mat, pack 100 (3.5ml) disposable cuvettes, 8 position multi-cell changer and instruction manual. This product is pre-set for 110V/60Hz operation

650 501 - Model 6505 split beam UV/Visible range spectrophotometer (190-1100nm)(without printer) supplied with 230V un-terminated mains lead, serial mouse, mouse mat, pack 100 (3.5ml) disposable cuvettes, 8 position multi-cell changer and instruction manual. For use on 230V/50Hz

650 531 - Model 6505 split beam UV/Visible range spectrophotometer (190-1100nm)(without printer) supplied with US line cord, serial mouse, mouse mat, pack 100 (3.5ml) disposable cuvettes, 8 position multi-cell changer and instruction manual. This product is pre-set for 110V/60Hz operation



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
