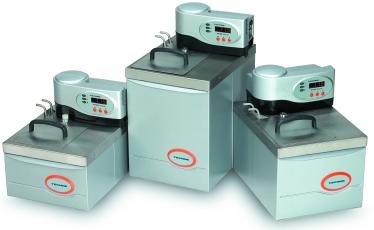

Bibby Scientific Open Liqud Calibration Baths
Bibby Scientific offer the
most comprehensive
range of liquid baths
on the market with a
choice of four
different temperature
controllers and five
stainless steel baths with a
capacity from 8 to 48 litres.
Twenty different combinations of bath offer temperature management
over the range of -40degC* to +200degC to suit most laboratory calibration
applications.
Each model has a rugged splash proof case, with all submerged
parts being made from stainless steel or high temperature engineering
plastic. Powerful pressure circulation pumps with external circulation
connections are fitted as standard on all models (excluding the
TU-20HT).
Inlet and outlet pipes at the rear of the controller can be used for
external circulation to control the temperature of other apparatus or
sealed for circulation within the bath itself. (excluding the TU-20HT).
The baths are also suitable for below ambient temperature applications
with a cooling coil (optional extra) or with a Dip or Flow Cooler, for
temperatures down to -35degC, please see page 16 or contact our Sales
Office for further information.
|
The software package 'Thermsoft' is available as an accessory with the
TU-20D and standard with the TU-20HT allowing the user to program
via a PC, temperature, ramp rates and hold time. Control packs for
refrigeration units and cooling coils allow for programmed rates of
cooling.
|
PortableThermoregulators Inventors of the "Clip On"
thermoregulator in 1948, Bibby Scientific now offer four new
"Clip On" units. These new thermoregulators will
convert your existing liquid bath or container into a
precision temperature controlled bath with an
exceptional thermal performance and offer a full range
of options such as external circulation, analogue or
digital set/readout, high pump output and RS232
interface.
TE-10A
The Tempette clip-on thermoregulator
offers a temperature range of -20degC* to
+95degC covering most routine laboratory
calibration applications.
A circulating pump
with external circulation connections is
standard, as is an adjustable over
temperature cut-out.
|
|
TE-10D
This Tempunit offers a temperature range of
between
-40degC* to +120degC.
There is a digital
temperature selector, circulating pump with
external circulation connections, adjustable
over temperature cut-out and low liquid level
cut-out.
|
|
TU-20D
A wide temperature range of -40degC* to
+200degC can be digitally selected with this
model of the Tempunit.
This unit
incorporates the additional feature of RS232
connection.
|
|
TU-20HT
This Tempunit covers the temperature range -
40degC* to +250degC, is designed for internal
circulation only and has an audible alarm
fitted.
Features RS232 connection and
Thermsoft Software package and lead as
standard.
|
|
* Cooling water or refrigeration is required for
below ambient temperatures.

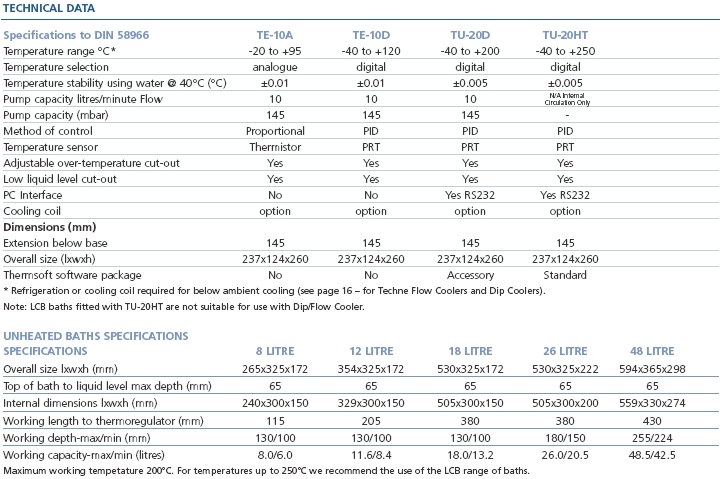

Data Sheet
TE-10A,
TE-10D and TU-20D Manual
TU-20HT Manual
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
