Bibby Scientific SB3 Variable Speed, Timed Rotator


  Fully adjustable mixing angle

  Variable speed

  Digital timer

  Choice of tube holders to hold a number of different sized tubes

  Spillage tray

The SB3 is ideal for aerating cultures, keeping biological samples in suspension and for general mixing applications.

The rotator can be used in incubators up to 60 degC and in cold rooms down to 4 degC.

The rotator has a variable speed of 2 to 40rpm for gentle rolling or vigorous mixing of samples and the angle of rotation is fully adjustable, from horizontal for minimal mixing to vertical for full end-over-end mixing.

A digital timer and speed display allow procedures to be accurately repeated for optimal results.

A tray catches any spillage from the rotating tubes.

Scale to measure mixing angle for future reference or continuity.

A choice of six tube holders are available to fulfil most applications. It is possible to use two tube holders simultaneously with our dual holder accessory.

Technical Specifications

Speed range - 2 to 40rpm
Speed control - Digital
Timer - 1 to 999 minutes
Net weight - 3.2kg
Dimensions (w x d x h) - 200 x 270 x 230 mm
Electrical supply - 230V, 50Hz, 50W


Ordering Information

SB3 - Rotator, variable speed, timer

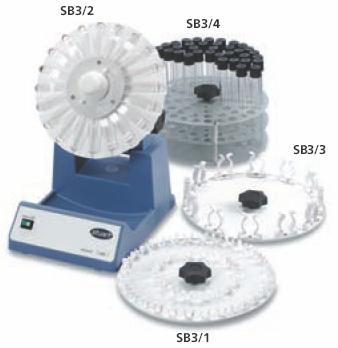

You must also order a tube holder as follows:

End-over-end action

SB3/1 Micro tube holder (tube diameter 10 to 11.5mm and max number of tubes 40)
SB3/2 Test/blood tube holder (tube diameter 9 to 20mm and max number of tubes 20)
SB3/3 50ml centrifuge tube holder (tube diameter 25 to 35 mm and max number of tubes 12)

Rolling action

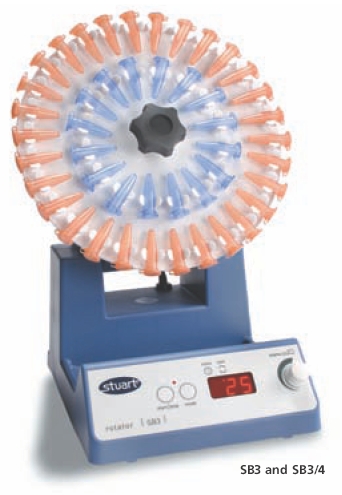

SB3/4 Culture tube holder (tube diameter 12mm and max number of tubes 63)
SB3/5 Culture tube holder (tube diameter 16mm and max number of tubes 63)
SB3/6 Culture tube holder (tube diameter 26mm and max number of tubes 30)

Accessories

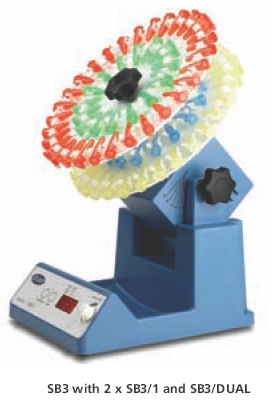

SB3/DUAL Multiple tube holder accessory








Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
