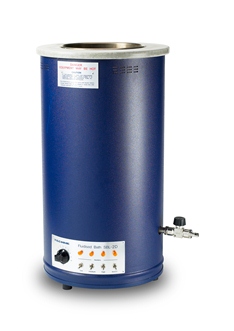

Bibby Scientific SBS-4 and SBL-2D Fluidised Baths

The SB Fluidised Baths offer a safer alternative to the dangers associated with high temperature oil and salt baths.

These units are designed to be bench or floor standing and only require an electrical and air supply for operation. Air passes through the mass of the aluminium oxide (Alundum) particles via a porous plate in the base of the unit separating the individual particles and suspending them in free air, giving the properties of a liquid bath.

Heaters are fitted within the bath which allow temperatures of up to 600C to be maintained.

Both the SB range units have a stainless steel inner container insulated from the outer wall and a safety air pressure switch in the event of loss of air and also a thermal cut-out.

It is highly recommended that the TC-9D temperature control unit is used in conjunction with these baths, thus greatly improving temperature stability and accuracy.

Ordering Details

F932D SBS-4 230v 50 60Hz supplied with 25kg Alundum and overspill flange

F946H SBL-2D 230v 50 60Hz supplied with 50kg Alundum and overspill flange

Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
