Please note - this product is now obsolete. Please click here for the current models.

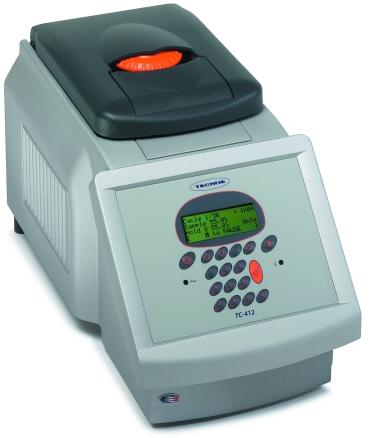

The new TC-412 thermal cycler, flexible on your protocols, easy on your budget.
The TC-412 is a high performance, high sample throughput instrument at a highly affordable price.
Flexible block format: The truly user-friendly fully interchangeable block system allows blocks to be exchanged in a matter of seconds without the need of any tools (60 x 0.5ml, 96 x 0.2ml, 96 x 0.2ml for fully skirted plates, 384-well or flat plate for in-situ).
New design flexible heated lid: Defined pressure, programmable heated lid to accommodate a variety of consumables.
Intuitive programming: New 4-line display with intuitive, simple-to-use software with alphanumeric programming, password protection, simple copy/edit functions and much more.
8 Peltiers: Building on the innovative Quad Circuit Technology of the TC-512, the TC-412 ensures unsurpassed control accuracy and temperature uniformity.
Low cost: The TC-412 is probably the most affordable full sized Thermal Cycler.
PC networking: The TC-412 can be connected to a PC along with other Bibby Scientific cyclers for low volume or high throughput applications using Gensoft.
0.5ml capacity - 60
0.2ml capacity - 96
384-well block - Yes
In-situ block - Yes
User interchangeable - Yes
Maximum ramp rate - 2.6 degrees/sec
Temperature range 4 degrees to 99 degrees
Temperature set point precision - 0.1 degrees
Selectable heated lid temperature - 100 degrees - 115 degrees
Heated lid enable/disable - Yes
Over temperature cut out - Yes
Regulated lid pressure - Yes
Heated lid only comes on if block is set above - 35 degrees
Number of programs - 80
Password protection - Yes
Programming - 4-line alphaN
Incremental/decremental temperature - Yes
Incremental/decremental hold time - Yes
Maximum hold time - 18 hrs
Minimum hold time - 1 sec
Variable programmable ramp rate - 0.1 degrees/sec steps
Run end time calculation - Yes
Pause and stop facility - Yes
End of program alarm (enable/disable) - Yes
Auto restart on power failure - Yes
Serial port - RS232
Dual Voltage (120/230V) - Yes
Temperature sensor - Thermistor
Peltier elements/block - 8
Dimensions L x W x H (in inches) - 16.5 x 8.6 x 10.2
Footprint L x W (in inches) - 16.5 x 8.6
Connection to PC control program - Yes
Free software upgrades from website - Yes
Power consumption - 620 Watts
Frequency - 50 - 60 Hz
Net weight (in lbs.) - 25
Block temperatures - To provide thermal cyclers with the high performance and specificity required for the protocols of today, heated block design and program versatility are important features.
Incremental/decremental temperatures - Touchdown PCR protocols are where a higher temperature is required for the initial cycles than later cycles. This ensures that only highly specific product is created (amplified) during the critical initial steps. A decreased, less stringent temperature is then used by gradually decreasing the annealing temperature. The effect is a higher yield and more specific product. Therefore, to eliminate the need for programming lengthy error prone protocols, choose a thermal cycler which can automatically incorporate an incremental decrease/increase in temperature.
Incremental/decremental time - Long template PCR is the amplification of large fragments of DNA (e.g. 40kb lambda, 27kb Genomic). To ensure that the extension is fully complete after each cycle, the extension time is increased with each cycle to compensate for the increased product quantity and decreasing concentrations of reagents. As above with temperature, choose a thermal cycler which can automatically increase/decrease hold time at a given temperature.
Peltier technology - The peltier effect is used in many applications for the reliable cooling of sensitive high-temperature components without the need for refrigerants or compressors. Otherwise known as thermoelectric coolers, peltiers are a special type of semiconductor that function as a solid state heat pump. By applying a low voltage DC power source to one side, heat will be moved in the direction of the current (+ to - ). The heat is thus pumped from one side of the module to the other, so that one face will be cold while the opposite face will be heated. As this effect is reversible, peltier technology is the chosen method for heating and cooling the block in the best thermal cyclers on the market today.
FTC41S5D - TC-412 60 x 0.5ml microtubes, 230/115V
FTC41H2D - TC-412 96 x 0.2ml microtubes or 96-well plate, 230/115V
FTC4384D - TC-412 384-well microtitre plate, 230/115V
FTC41FLD - TC-412 Flat plate for in-situ, 230/115V
FTC41B5D - Block for 60 x 0.5ml microtubes
FTC41BHD - Block for 96 x 0.2ml microtubes or 96-well plate
FTC4B384 - Block for 384-well microtitre plate
FTC41BID - Flat plate block for in-situ
