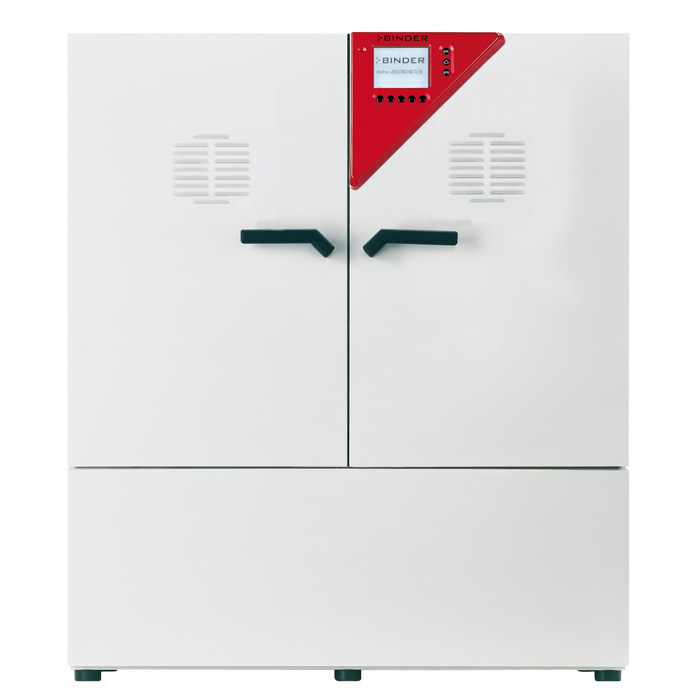

Binder KBF ICH Constant Climate Chambers

Constant climate chamber with ICH conform illumination

Specialized equipment for photostability tests. Integrated cooling of fans consistently compensates for the additional heat from the light and thus provides unambiguous, meaningful test results in compliance with guideline ICH Q1B, Option 2.

The two sources for visible and UV light can be controlled separately, which provides higher accuracy for analysis.


  Electronically controlled APT.line™ preheating chamber and refrigerating system assuring temperature accuracy and reproducible results
  Temperature range -10 °C (14 °F) up to 100 °C (212 °F) - without humitiy
  Humidity range 10 % RH to 90 % RH
  MCS controller with 25 storable programs of 100 sections each for a maximum of 500 program segments
  Features user friendly LCD screen, easy-to-read menu guide, integrated electronic chart recorder, variety of options for the graphic display of process parameters and real time clock
  Electronically controlled humidification and dehumidification system with capacitive humidity sensor suitable for stability tests according to ICH guideline Q1A (R2)
  Inner glass door
  Environmental friendly refrigerant R 134a
  Independent adjustable temperature safety device class 3.1 (DIN 12880), with visual and audible temperature alarm
  Access port with silicone plug Ø 30 mm (1.18 inch), left side
  Complete safety connection kit for water supply and drainage, including water hose, total length 6 m (19.7 ft.)
  RS 422 interface for GLP/GMP and the FDA guideline 21 CFR Part 11 compliant APT-COM™ DataControlSystem software
  2 stainless steel racks included
  KBF ICH 240 series with ICH-compliant illumination integrated into the doors for photo-stability testing in accordance with ICH guideline Q1B, Option 2
  BINDER test certificate





Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
