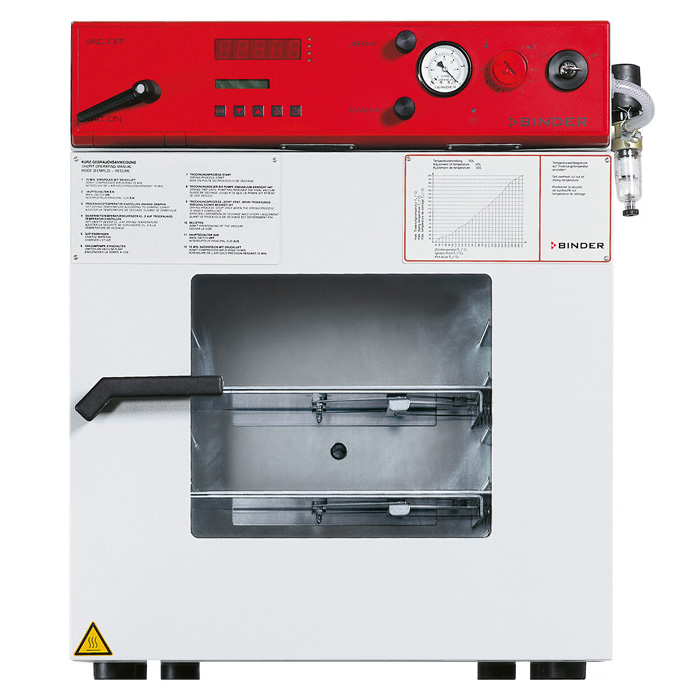

Binder VDL Vacuum Drying Ovens

Safety vacuum drying oven for flammable solvents

The VDL series ensures maximum safety when drying organic solvents in accordance with T�V/GS guidelines.

The interior chamber is designed in accordance with the ATEX Directive for Zone 2.


  Electronically controlled APT.line™ preheating chamber technology with 2 patented expansion racks assures temperature accuracy and reproducible results
  Temperature range 15 °C (27 °F) above ambient temperature up to 200 °C (392 °F)
  MP controller with 2 programs with 10 sections each, or alternatively 1 program with 20 sections. Integrated week program timer with real time function. Digital temperature setting with an accuracy of one degree. Elapsed time indicator.
  Spring mounted safety glass panel with shatter protection
  Precision-adjustable ventilation valve
  Precision-adjustable inert gas valve with Cross-Flow-Technology
  Safety features: pressure control device for heating activated < 125mbar (94 torr), over pressure capsuled instrument panel with compressed air connection and maintenance unit and flame protection gasket.
  Analog pressure gauge (display pressure difference between the inner chamber and the ambient pressure)
  Electro polished inner chamber, suction and ventilation tubes, pressure container, expansion racks and ball valve are made of stainless steel
  Door gasket made of tempered silicone
  Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
  Measuring port DN 16
  Printer- and communication interface RS 422 interface for use with optional GMP/GLP and FDA guideline 21 CFR Part 11 compliant APT-COM™ DataControlSystem software
  2 patented, flexible aluminum expansion racks
  All electrical componets are decoupled from the interior chamber
  Available as complete system, with module and vacuum pump.
  Features reduced sound level, pactical working height and well balanced system.
  BINDER test certificate

VDL 53


VDL 23
VDL 53
VDL 115

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
