Carbolite HTRV-A Split Tube Furnaces (up to 1700°C) Carbolite HTRV-A Split Tube Furnaces (up to 1700°C)

Carbolite HTRV-A Split Tube Furnaces (up to 1700°C)

The Carbolite HTRV-A Split Tube Furnaces (up to 1700°C) have a maximum operating temperature of 1700 °C.

Key Features

  • 1600 and 1700 °C maximum operating temperatures
  • Programmable 3216P1 controller
  • Over-temperature protection
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

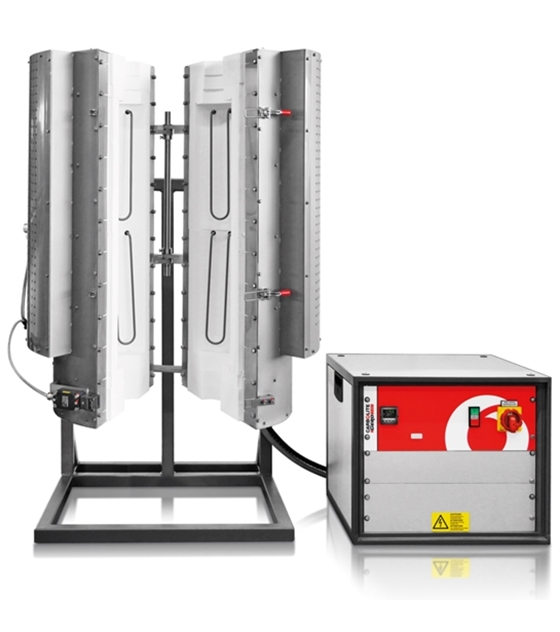

The split heating module allows either easy positioning of the work tube or positioning around reactors which have fixed end flanges. The split design may also allow faster cooling of samples. The control thermocouple is fitted in the centre of the heating zone. Cooling channels are engineered into the housing to aid with convection cooling of the outer case.

The two furnace chamber halves consist of high grade insulation plates with vertically hanging MoSi2 heating elements. A safety switch protects the operator by switching off the heating elements once the furnace is opened.

The tube furnace is supplied without a stand, allowing customers to build them into their own equipment. Optional "L" stands are available allowing the furnaces to be self supporting.

Standard features

  • • Designed for vertical use
  • • Accepts work tubes with outer diameters up to 70 mm for use with modified atmosphere
  • • Heated lengths of 120, 250 or 500 mm
  • • High grade type B thermocouple
  • • Low thermal mass ceramic fibre insulation
  • • Vertically hanging high quality MoSi2 heating elements
  • • Rectangular housing with holes for convection cooling
  • • Supplied with separate control box and 3 m cable, plug and socket

Options (specify these at time of order)

  • • A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
  • • A range of additional work tubes is available in a variety of materials
  • • Insulation plugs & radiation shields to prevent heat loss & improve uniformity
  • • Modified atmosphere and vacuum packages are available
  • • Vacuum packages with a choice of rotary vane pump or turbomolecular pump are available
  • • Longer heated lengths
  • • 'L' stand for convenient usage
  • • Oxygen sensor for inert gas packages

Models
  • 00043645 HTRV-A 16/70/120

  • 00042124 HTRV-A 16/70/250

  • 00042125 HTRV-A 16/70/500

  • 00047984 HTRV-A 16/70/700

  • 00047986 HTRV-A 16/100/500

  • 00047988 HTRV-A 16/100/700

  • 00042138 HTRV-A 17/70/250

  • 00042139 HTRV-A 17/70/500

  • 00047985 HTRV-A 17/70/700

  • 00047987 HTRV-A 17/100/500

  • 00047989 HTRV-A 17/100/700
