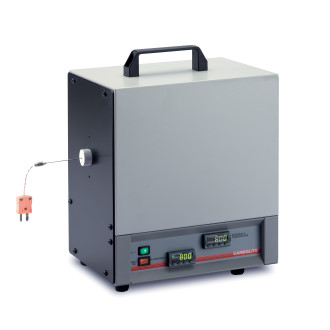

Carbolite PTC Thermocouple Calibration Furnace

Carbolite PTC Thermocouple Calibration Furnace

The Carbolite PTC Thermocouple Calibration Furnace is designed to provide a high stability portable heat source for the calibration of thermocouples using the comparison method.

Key Features

  • 1200°C maximum operating temperature
  • High stability heat source with temperature range 400 to 1150°C
  • Accepts thermocouples up to 7.5mm diameter
Get a Quote
Carbolite

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Standard features

  • • Thermocouple is inserted & compared to the PTC 12/20's displayed temperature
  • • PID temperature control & separate temperature display to 1.0°C resolution
  • • The special work tube design provides better temperature uniformity than is typical for a furnace of this size
  • • The metallic work tube is earthed for operator safety when testing metal sheathed mineral insulated mineral thermocouples
  • • Rapid heat up and stabilisation makes it ideal for use in the laboratory or on site
  • • Portable & self contained

Options (specify these at time of order)

  • • Factory calibration certificate stating the error between the workspace temperature & the displayed value at 700°C, 900°C, & 1100°C
  • • A UKAS traceable calibration certificate for customer defined setpoints is available
  • • A UKAS calibrated thermocouple is available

Models
  • PTC1220-208SN PTC 12/20/150 1200°C, 20mm Ø, Thermocouple Calibration Furnace (200 - 210 V-SR-single phase + N)

  • PTC1220-230SN PTC 12/20/150 1200°C, 20mm Ø, Thermocouple Calibration Furnace (220 - 240 V -SR-single phase + N)
