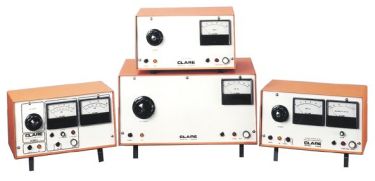

Clare A203ES 0-5kV a.c. Flash/Hipot/Dielectric Withstand Tester with 125mA capability


  Simple clear logical user interface
  Voltage fully adjustable from 0 to 5 kV a.c. with large clear meter display
  Voltage sourced from a 500VA transformer
  Built in key protected selectable 5, 25 or 125mA leakage trip with large clear meter display scaled 0 to 5mA with X 10 and X 100 scale for higher ranges
  Push button trip bypass (burn out) facility for fault tracing
  Supplied with high quality sprung shrouded safety probes
  Rugged design suitable for industrial use
  Over current or flash/dielectric breakdown indicated by latching panel lamp and audible alarm.
  Fault indication reset by safety button

The A203ES is a cost effective, simple to use, rugged test system suited to manufacturing or laboratory environments. It can deliver a test voltage of 0 to 5 kV a.c. from an internal 500VA transformer source, and has displays that show both output voltage and current flow. Over-current or flash/dielectric breakdown are indicated by a latching lamp and audible lamp, with separate fault reset button. This product comes with the trademark Clare sprung shrouded safety probes. This product is suited to conformance type test laboratories as it meets the requirements of EN 60335-1 and other international standards that require a leakage capability in excess of 100mA.



Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
