Coliy Technology M160S Non-Contact On-Line Microwave Analyser



Non-contact on-line microwave moisture analyser M160S is the latest designed product of Coliy Technology GmbH. It uses the latest technology of microwave measurement and electronic circuitry to make its operation simple and reliable. Its panel is ergonomically designed for easy operation. The large sized screen adopts VGA display. It displays all the required information very effectively and conveniently. Customer can select more than 10 kinds of different data settings for VGA display randomly or simultaneously. All operations are carried out simply by finger touch on the screen.

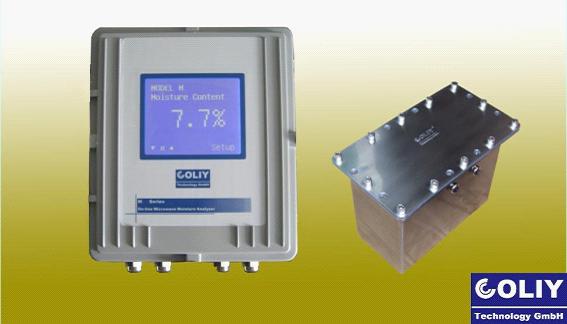

Non-contact on-line microwave moisture analyser M160S is composed of a host and a probe. Adopting the principle of non-contact reflective measurement the probe has no requirement to contact the measured materials. The probe is made of high-strength stainless steel with power of 30mW; it is with locking water-proof linking pieces between host and probe along with a 3 metre connection cable. All parts are waterproof and dustproof the solid stainless steel shell can resist accidental impact and the unit can be work long-term under severe environmental conditions. Non-contact on-line microwave moisture analyser M160S can measure the moisture content of most solids. With the characteristics of high reliability sturdiness and durability fast response and fine measurement accuracy it is designed to measure continuously the moisture content during the production process.

Non-contact on-line microwave moisture analyser M160S adopts microwave absorption principle using microwave frequency with high reliability and anti-jamming ability. Measurement data can be gained within 100 milliseconds and the accuracy is as high as 0.5%. Measuring scope ranges between 0-40% or higher and it offers the fully automated range without userís adjustment. It can almost detect moisture in any solid material (not containing too much metal): coal, cement, mineral, paper, sugar, grain, popcorn, flour, seed, cut tobacco, tobacco leaf, quartz sand etc.. Coliy Technology GmbH can customize the product according to user's requirement.


While using the online microwave moisture analyser M160S you only need to fix it on a place 200mm above the measuring materials or 200mm under the conveyor belt. And the moisture content will be detected without contacting the measuring materials. As the microwave is quite sensitive to water and when it penetrates the measuring materials its power and phase will be changed. By detecting this change M160S can measure the value of moisture content. Technicians of Coliy technology GmbH adopt the advanced software technology and combine it with engineering experience. M160S is easy to install stable and durable making its use very convenient. Besides analog output (4-20mA) online microwave moisture analyser M160S offers RS232 relay and memory card as options to meet different needs.

The physical principle of the measurement is based on the Law of microwave resonance. The water content of the product is determined by attenuation and frequency shift of microwave energy. Due to the small capacity of the microwave energy, it wonít heat up the sample and microwave can fully penetrate the product. So all of the Physical moisture will be measured. It is not only applied to measure moisture content on the surface of objects but also within the objects. This microwave technology ensures a high moisture selectivity rate so it can assure the high-accuracy measurement of moisture content of all products and the results will not be affected by different colors and surface structure of the product.

Keison Products is proud to be the exclusive distributor of Coliy Technology in the United Kingdom, United Arab Emirates, Latin America and the United States of America.


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
