DNH Loudspeakers CAREEX-6(T)

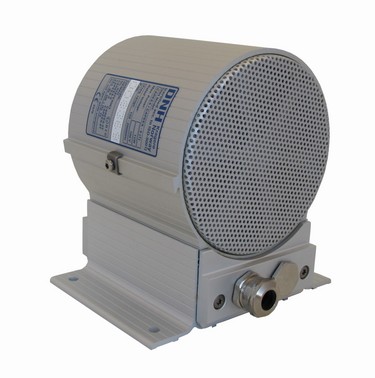

The DNH CAREEX-6(T) is a 6 watt wall mounting bi-directional projector loudspeaker, manufactured from marine grade aluminium alloy, and is suitable for installation in zone 1 hazardous areas. The standard version is available in gas group IIB.

With a maximum sound pressure level of 97dB(A), this small, robust, lightweight loudspeaker is weatherproof to IP67 (terminal chamber) and features dual M20 gland entries. A six step transformer is fitted to the line voltage models that allows adjustment of sound output by altering the power consumption.

This product is supplied with a wall mounting bracket.

The CAREEX-6(T) carries gas (G) certification, and in addition to European ATEX certification, is also IECEx approved and approved in North America, Brazil and Russia.

Typical applications are offices and accommodation areas for offshore and onshore oil and gas production facilities, chemical manufacture, refineries, etc.

This loudspeaker is for internal installation only.

This loudspeaker is available in the following standard versions:

CAREEX-6 low impedance (8 ohm or 20 ohm)
CAREEX-6T line voltage transformer (100V)

Other impedances or transformer voltages to order.

DNH Loudspeakers CAREEX-6(T)

Data Sheet
Type Approval Certificate

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
