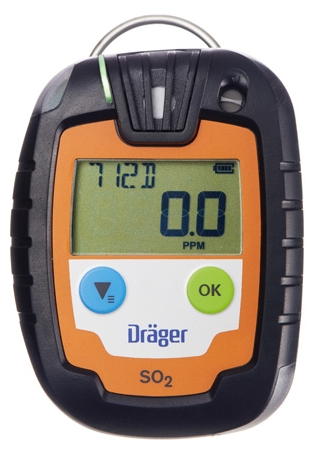

Drager Pac 6000 Single-Gas Detection Device


The disposable personal single-gas detection device, Dräger Pac® 6000, measures CO, H2S, SO2 or O2 reliably and precisely, even in the toughest conditions. The robust design, quick sensor response times, and a powerful battery ensure maximum safety for up to two years with virtually no maintenance required.

Strong performance for maximum safety - You can rely on the Dräger Pac 6000: The personal single gas detection device warns against hazardous concentrations of carbon monoxide, hydrogen sulphide, sulphur dioxide or oxygen with precision and reliability. Powerful sensors with a very low t-90 response time ensure quick reactions. The Pac 6000 is versatile thanks to its wide measurement range. For example, the CO sensor measures concentrations from 1 to 1,999 ppm, and the H2S sensor from 0.4 to 100 ppm.

Easy handling thanks to clear user guidance - The D-Light indicates whether the functionality of the device has been tested and that it is ready to use. The housing is also designed with your safety in mind: each sensor variant of the Dräger Pac 6000 features a clear, well visible colour coding, thereby minimising the chance of mistakes.

Robust design - even for the toughest conditions - The Pac 6000 can easily handle even extreme conditions: depending on the sensor, temperatures from -40 °C to 55 °C and air pressures between 700 and 1,300 mbar can be tolerated. A membrane filter protects the sensor from foreign matter such as dust and liquids. The shock-proof, chemicalresistant housing meets the requirements specified in the IP68 standard rating.

User-friendly display with all important information - The large display is non-verbal and clearly indicates the respective gas concentration. Other important information, such as remaining operating time and battery capacity, is also displayed. The bright backlighting ensures clear reading of all values in the dark.

360° alarm with various functions - If the Dräger Pac 6000 measures hazardous gas concentrations, it sets off an audible, visual, and noticeable vibrating alarm. Two bright, flashing LEDs on the top and bottom of the device ensure that the alarm is easily visible from all sides. The acoustic alarm reaches a volume of 90 dB. The display can show the peak concentration measured at any given moment. Earlier alarms registered can also be retrieved at a later time even if acknowledged.

The Pac 6000 with oxygen sensor has two additional alarm thresholds in addition to the standard alarm threshold setting.



Event logger for analyses and reports - The Dräger Pac 6000 logs concentrations and events along with date and time. The data can be downloaded to a PC via an interface and processed further there.

Economical operational costs - All of the versions of the Pac 6000 are equipped with extremely durable DrägerSensors® and a powerful battery. Neither the sensor nor the battery need to be changed for the entire two-year maintenance-free service life of the H2S, SO2 and CO versions. The service life of the Dräger Pac 6000 starts when it is first activated. The device automatically switches off after two years.

The Pac 6000 is protected against water, dust and other foreign bodies by a special membrane filter. When the filter becomes heavily soiled you can quickly and easily replace it yourself. The device is then ready to use again in no time.

Fast function test saves time and money - Function tests and calibrations can be carried out especially efficient using the Dräger X-dock® calibration station. The automatic bump tests in the X-dock are a cost-efficient and convenient solution thanks to short test duration and extremely low test gas consumption. The Dräger Pac 6000 is simply placed in the bump test station and automatically selects the correct setting.


Datasheet

Ordering Information


Dräger Pac® 6000 CO 8326321
Dräger Pac® 6000 H2S 8326320
Dräger Pac® 6000 O2 8326322
Dräger Pac® 6000 SO2 8326323
Dräger Pac® 6000/6500 8326340

Calibration accessories

Calibration adapter 8318588
Dräger X-dock® 5300 Pac 8321881
Dräger Bump Test Station for Dräger Pac®, without gas cylinder 8317410
Dräger Bump Test Station for Dräger Pac®, including one test gas cylinder (gas and concentration selectable) 8318586

Communication accessories

Communication module, including USB cable 8318587

Spare parts

Battery 8326856
Sensor grid (black) 8326853
Crocodile clip set 8319186



Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
