Drager PIR 7200

Drager PIR 7200

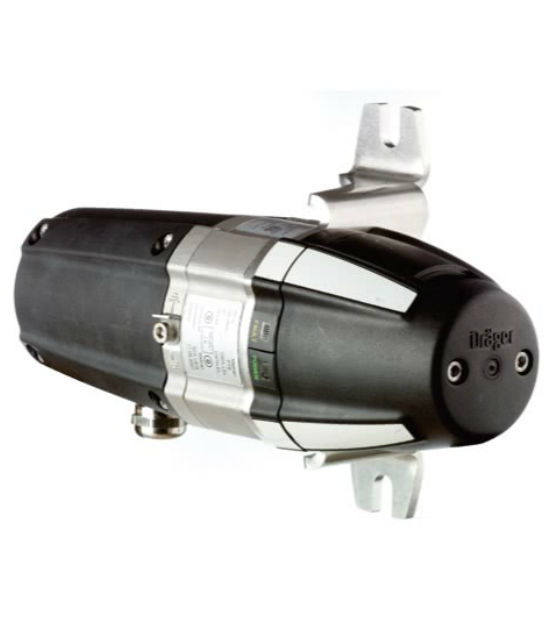

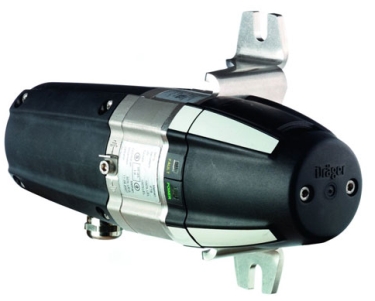

The Drager PIR 7200 is an explosion proof point infrared gas detector for continuous monitoring of carbon dioxide. Designed for the industrial use, the transmitter offers drift-free optics. And due to its robust product design the PIR 7200 can be operated even in harsh environments.

Key Features

  • Advanced signal stability
  • Fast response
  • Multiple configuration capabilities
Get a Quote
Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Drager

Advanced signal stability

Almost two decades after launching the first fixed infrared gas detector - followed by a great market success with more than 100,000 units sold - Drager now introduce the Drager PIR 7200 which encompasses the latest in revolutionary technology.

Based on patented innovations, the Drager PIR 7200 combines a maximum light collecting construction with a 4-beam signal stabilising system. The total optical system uses no light beam split, simply a set of various reflectors. This double-compensating optical system is very resistant towards known influences such as dust, fog or insects frequently found in the measuring cuvette or by dirt accumulation on the optical surfaces. Due to its non-imaging construction, the measuring signal is not affected by a partial beam block.

This innovative optical system ensures that the Drager PIR 7200 fulfils the customer requirements in industrial applications of "no false alarms",

longer service intervals and a drift-free signal output.

Fast response

Equally important is being informed about a potential hazard as early as possible. An early and reliable gas alarm allows for safety measures to be initiated on site.

To support this, the Drager PIR 7200 offers a configurable response mode which allows the end user to choose between "normal" or "high speed" response subject to the application. Using the "high speed" option, and combining it with the lowest feasible alarm threshold, the Drager PIR 7200 shortens the reaction time in case of an alarm. Leakages can be detected at the earliest stage of their existence.

Multiple configuration capabilities

The Drager PIR 7200 is delivered with the optimum default settings, but remains fully flexible to meet with the customers demands on an application-by-application basis. Whether it be reduced or increased measuring ranges or configurable special signals (fault, beam block warning, maintenance) - these features of the Drager PIR 7200 offer the possibility to set up every device exactly to the customer's needs and preferences.

Maximum reliability - SIL 2 certified

Years of experience in manufacturing gas detectors using infrared technology lead to a continuously enhanced product quality. Now, the Drager PIR 7200 is further advanced as the total product has been developed inline with the Functional Safety standard EN 61508. This is applicable to both the devices hardware and software.

Furthermore, the excellent parameters as detailed in the SIL 2 (Safety Integrity Level) certificate, issued by the German TÜV, show that only 2 % from the entire SIL 2 budget is allocated to the field device, thus providing flexibility to choose control systems and actuators. This is a new understanding of reliability - not only fulfilling but exceeding the SIL 2 requirements significantly.

PIR 7200
  • Drager PIR 7200 (NPT) HART® 6811572

  • Drager PIR 7200 (M25) HART® 6811570

Accessories
  • Mounting set 6811648

  • Duct mount set 6811850

  • Ex e junction box 6811898

  • Splash guard 6811912

  • Insect guard 6811609

  • Hydrophobic filter 6811890

  • Calibration adapter 6811610

  • Status indicator 6811920

  • Flowcell 6811910

  • Bump test adapter 6811930

  • Process adapter 6811915

  • Process cuvette 6811415

  • Magnetic wand 4543428

  • USB PC adapter 6811663
