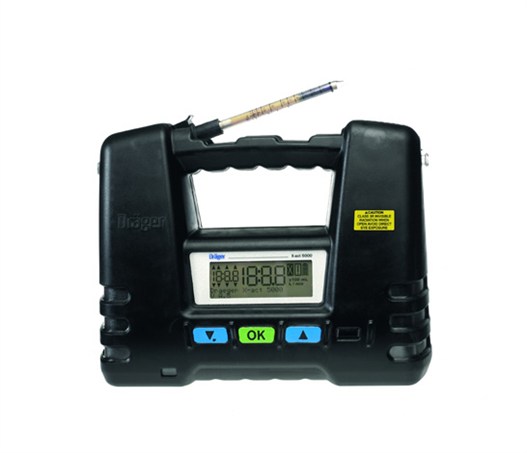

The automatic tube pump Drager X-act 5000 is the first all-in-one
solution designed for measurements with Drager short-term
tubes and for sampling tubes and systems. Ease of operation and a
high degree of reliability compliment the measurement and sampling
of gases, vapors and aerosols.
New Pump Concept
Simplicity of Operation
Automatic Transfer of Measurement Parameters
Measurement in Technical Gases
Direct Settings for Sampling
The Drager X-act 5000 introduces a new
era of gas measurement: Only one device
is necessary for measuring and sampling.
The automatic tube pump is compatible
with Drager short-term tubes as well as
sampling tubes and systems.
housing supports the use of the pump to
perform the daily measuring tasks under
tough conditions. The components of the
pump are corrosion resistant and the
pump is additionally equipped with an
user replaceable filter which traps sulfur
trioxide aerosols protecting the pump for
up to two years.
The display is backlit
to enable use of the pump under poor
lighting conditions. All Drager short-term
tubes and accessories can be used with
the Drager X-act 5000.
The IS approved
Drager X-act 5000 can be used for
confined space applications and in
explosive gas atmospheres - always ready
wherever fast and reliable on-site
measure ments are required.
NEW PUMP CONCEPT -
The Drager X-act 5000 is based on a
completely new pump concept. The key
principle is the ability to provide the
required flow characteristics of the
Drager short-term tubes, while also providing
the option to be used with sampling
tubes and systems requiring constant
flow. Compared to the Drager accuro
hand pump, this new concept reduces the
average measurement time of the Drager
short-term tubes in case of a high number
of strokes. The internal pump is also
designed to use extension hoses up to a
length of 30 meters (98 ft.).
SIMPLICITY OF OPERATION -
The handling of gases, vapors and
aerosols has never been easier. The automatic
tube pump, Drager X-act 5000,
directs the air to be measured through the
appropriate Drager-Tubes effortlessly. It is
comfortably carried with one hand or using the shoulder strap and is easily
operated, even wearing protective gloves.
A simple and intuitive menu structure
provides the user efficient operation with
just a few button presses. Using the
password-protected menu repetitive
operating modes can be set.
AUTOMATIC TRANSFER OF MEASUREMENT
A barcode printed on the label on the
backside of a Drager short-term tube
box contains all relevant measurement
parameters. Simply sliding the barcode
over the barcode reader of the pump,
automatically transfers the name of the
substance to be measured, the number of
strokes, and the measuring range to the
display. The required steps to carry out the
measurement are simplified with the
Drager X-act 5000 and the possibility of
making an error is reduced to a minimum.
MEASUREMENT IN TECHNICAL GASES -
Drager short-term tubes are calibrated for
measurements in ambient air. To evaluate
measurements in technical gases, the
properties of the technical gas must be
taken into consideration. Technical gases
have a different viscosity than ambient air.
Therefore, the flow of the pump must be
set accordingly. Following the operating
steps in the mode "Measurement in
Technical Gases", the Drager X-act 5000
will automatically be adjusted to the required
flow parameter and the measurement
result can be read directly.
DIRECT SETTINGS FOR SAMPLING -
Depending on the sampling tubes or
systems, the required parameters for
the test can be set directly, without the
need for an external flowmeter. The
Drager X-act 5000 automatically adjusts
the flowrate. After setting the sampling
time the pump can immediately be started.
At the end of the measurement the pump
will stop automatically. The set data, the
elapsed time and the pumped volume will
be indicated on the display.
