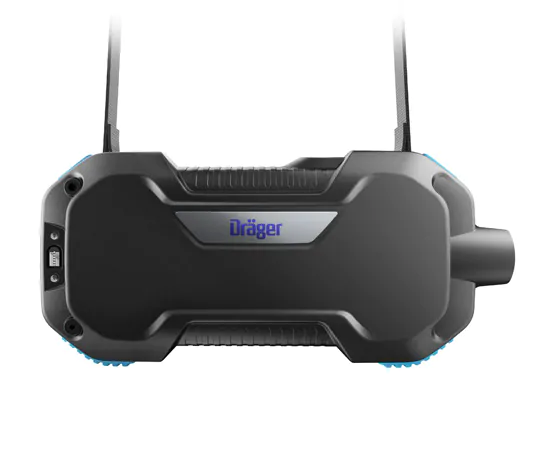

Drager X-pid 9000/9500 PID Gas Measurement Device

The Drager X-pid 9000/9500 selective PID gas measurement device is ideal for users who frequently test for hazardous toxic substances. Benzene, butadiene and other volatile organic compounds (VOCs) are carcinogenic even in the smallest concentrations. Selective measurement is necessary because other gases and vapours are often also present. The gas measurement device allows for short test times and laboratory-quality results.

Draeger X-pid Key Features
  • Selective VOC gas detection
  • For frequent testing of toxic & carcinogenic substances
  • Laboratory quality results in very low concentrations
  • Benzene measurement starting from 50 ppb
  • No consumables per measurement
Get a Quote
Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Two modes for an efficient measurement strategy
“Seeker” mode is a broadband measurement for pre-testing and localising measurement points. It allows continuous, direct-reading measurement of the total concentration of all VOCs present. “Seeker” mode is similar to using a single-PID gas measurement device.

“Analysis” mode allows selective measurement for monitoring specific toxic compounds. Pre-defined target compounds can be precisely measured in seconds. “Analysis” mode is similar to gas chromatography analyses conducted in the laboratory.

Up to 90% time savings
The Dräger X-pid 9000/9500 requires no preparation and is ready to use after a brief start-up phase. Selective measurement in “Analysis” mode takes only a few seconds. A benzene measurement starts with the push of a button and is completed in only 30 seconds. After another 60 seconds, the device is ready to measure for benzene again. Compared with other detection systems, the Dräger X-pid 9000/9500 saves considerable time and enables further monitoring to be undertaken. Simultaneous measurement of other compounds, like benzene and butadiene, further reduces testing times.

Cost savings
Because no consumables are used to take measurements, operating costs can be reduced. For users with high measurement needs, the Dräger X-pid 9000/9500 quickly pays for itself. For example, it requires no pre-tubes, also making it easier to use and preventing user errors. On the basis of 200 measurements per year, the Dräger X-pid 9000/9500 is generally more cost-effective than comparable measurement systems.

High selectivity for greater safety
The selective measurement mode “Analysis” relies on technology which separates individual compounds present in mixed gases. This makes it possible to conduct a compound-specific measurement for benzene, even if other VOCs like toluene and xylene are also present in high concentrations. Cross-sensitivities for benzene are reduced to a minimum. This reduces the number of false-positive measurement results and false alarms.

Reliable performance under tough conditions
The influence on measurement results by environmental factors like variable ambient temperature or high humidity are reduced to a minimum. The sensor unit maintains a constant temperature above the ambient air temperature and separates water vapour from the target compounds. This ensures reliable measurements under tough environmental conditions.

Low detection limits
Concentrations of toxic compounds in the air at work sites must not exceed threshold limit values. Mandatory time-weighted averages in the low ppb to ppm range need to be performed for carcinogenic vapours like benzene. The Dräger X-pid 9000/9500 is optimised for measuring in this concentration range and detects benzene starting at 50 ppb.

Intuitive handling with mobile app
The sensor unit is controlled and the measurment data processing is conducted by a mobile app installed on an explosion-proof smartphone (delivery includes both). The large touch screen and familiar user interface elements are easy to use. This makes the sophisticated technology accessible to a broad group of users. No prior knowledge or extensive training is required.

Laboratory-quality measurement results
The gas measurement device is based on gas chromatography (GC) and photoionisation detection (PID) technologies. These technologies, used widely in laboratories, have a high acceptability due to their excellent analytical performance. The Dräger X-pid 9000/9500 brings these technologies directly to the hazardous area of any production site.

Simple functional test and calibration
The functional test with the test gas isobutylene and toluene is done in just two minutes and the Dräger X-pid 9000/9500 is ready to use. During the test the user is guided through the user interface step-by-step. The calibration is completed within about four minutes.

Two product models for different requirements
There are two models of the product: the 9000 and 9500. The Dräger X-pid 9000 covers the target compounds benzene and butadiene. The Dräger X-pid 9500 offers the possibility of combining more than 23 target compounds into individual analysis programmes and thus expanding its application range. This means, you can independently expand the target substance database for the Dräger X-pid 9500.



  • To order contact us via:

    Phone: Call +44 (0)330 088 0560
  • Email: [email protected]
  • Web Form: Get a quote

  • Dräger X-pid 9000 6851847
    Dräger X-pid 9500 68 51848
    Upgrade X-pid® on request
    Calibration
    Test gas 10 ppm isobutylene / 10 ppm toluene, 58 L 6814046
    Test gas 5 ppm benzene, 58 L 6814050
    Calibration Accessories
    Test gas 10 ppm isobutylene / 10 ppm toluene, 58 L 6814046
    Test gas 5 ppm benzene, 58 L 6814050
    Control valve basic 0.5 LPM 6810397
    Power supply Dräger X-pid 6851844
    Bags and Cases
    Case for Dräger X-pid® 9000 / 9500 6851851
    Carrying strap Dräger X-pid 6851846
    Hoses with 5 mm inner diameter
    FKM hose (color black, solvent resistant), max. order length 50 meter 1203150
    PTFE-lined Tygon hose, 3 meters 8326980
    PTFE-lined Tygon hose, spool of 15 meters 4594679
    Hoses with 3 mm inner diameter
    FKM hose (color black, solvent resistant), max. order length 100 meter 8325837
    FKM hose (color black, solvent resistant), 5 meter incl. adapters 8325705
    FKM hose (color black, solvent resistant), 10 meter incl. adapters 8325706
    FKM hose (color black, solvent resistant), 20 meter incl. adapters 8325707
    Probes
    Float probe (w/o hose) 6802337
    Float probe with 5 cm hose and 5mm luer female adapter 8327654
    Telescopic probe ES 150 8316533
    Bar probe 90, with accessories 8316532
    Bar probe 400 8317188
    Float probe (incl. 3 m FKM hose with 3 mm inner diameter) 8325831
    Adapters
    Spare set filter X-am 125 pump/X-dock, consisting of 1x water and dust filter, 1x
    hose connector for pump, 1x Adaptor male
    8319364
    Gassing adapter Dräger X-pid, to be used for bumptests and calibrations 6851850
