2 Channels Voltage (300V), 1 Channel Current +/-10A or +/-100A
Constant Sampling technique, misses very little data
Records DC voltage and current
Available as IP65/NEMA 12/4
The Electrocorder range is designed to allow users to monitor two DC voltage
channels and one DC current channel.
Setting up the Electrocorder DC-3VA is easy, suitable for semi-technical
staff. Using the supplied (free) Windows software, Electrosoft; the location's
details are input to the unit's memory and stored. Electrosoft will then print
documentation allowing users to record and/or pass on delivery instructions
to colleagues. All data is also stored in a database of dispatches and returns,
which tracks the whereabouts of all units.
Why is the Electrocorder better than other similarly priced competitors?
The Electrocorder range use a constant sampling technique, unlike the
single reading of competitors. When the loggers start to record, they sample
every channel 16 times 20ms. At the end of each averaging period, 3 quantities
are saved for each channel, the True RMS average, the Max, which is
the highest value during the period and the Min, lowest value. This means
that it will record all the peaks and troughs which are 20ms or longer.
When recording the Electrocorder will store the average DC voltage and DC
current over the period chosen (1 sec to 60 min), it will also record the
highest (max) & lowest (min) values during that period.
The voltage and current levels are stored with dates and times. With the
back-up battery, the Electrocorder can continue to record for 4 weeks. An
external 12Vdc PSU input is available, to allow for prolonged logging without
The stored data is uploaded to a PC via the supplied USB cable. Using
Electrosoft, the recorded voltage and current levels, dates & times can be
viewed in both tabular and graphical form, exported to a spreadsheet or
saved to file.
Electrocorder Range Presentation
Graphs can be printed showing the recorded levels and the allowable tolerance
bands. These results may then be discussed with the customer. Electrosoft
also provides an internal database which effectively manages the
distribution of multiple units.
On the logger, recording is signified by a flashing green light. A steady red
light advises users that the unit has completed recording.
This model is specifically designed to accurately monitor one or two DC
voltage channels, 1V to 300Vdc and one DC current channel. Allowing you
to monitor PV (photovoltaic) cell output, DC charger performance, as well as
many other applications like DC motors. There are many models of Electrocorder,
to suit many logging situations and user's requirements.
Monitor charging circuits, PV (photovoltaic) cell, DC motor,
and many other application.
Accurately record DC voltages and DC current.
Records VAvg, VMax & VMin on 2 channels, Iavg, Imax & Imin
on 1 channel.
Recorded data is uploaded to a PC for analysis
Free software, Electrosoft.

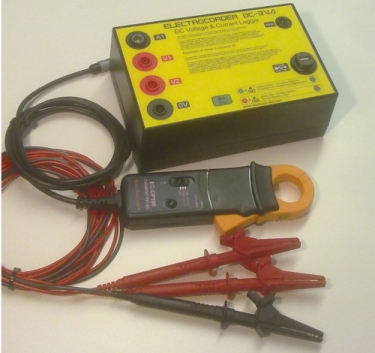

Kit includes Logger, Carry Case, Electrosoft software, three
fused voltage leads, DC current probe, USB lead & 12Vdc PSU.
Memory capacity of 32,000 true RMS values per channel (10
bit), up to 300 days continuous recording.
Selectable averaging period to suit each situation, accurate to <1% of range.
Accuracy:- 1V to 300V <1% of range. -10A to +10A <1% of range. -100A to +100A <1% of range.
Order code:- DC-3VA-IP43-KIT, DC-3VA-300-IP43-KIT and DC-3VA-300-IP65-KIT.
