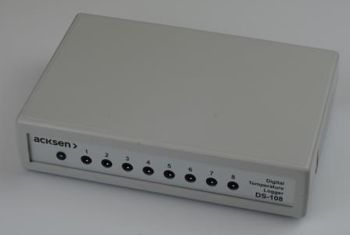

Electrocorder DS-108 Temperature and Digital Voltage Logger


  Ideal for lab work, education, research and testing
  8 x -55C to +125C (-67F to +257F) inputs
  8 x logic (voltage) inputs
  0Vdc to 2Vdc logic 0 (off) / 2.1Vdc to 30Vdc logic 1 (on)
  1 x 5V/400mA output
  1 x internal circuit/ambient temperature
  SET shipped with 4 digital temperature probes
  USB connection to PC
  Every channel sampled every second

With 8 digital inputs and 8 digital (logic) inputs, with the Electrocorder DS-108 you can monitor temperatures and the status (on/off, open/closed) of items of equipment or inputs.

Setting up the DS-108 by Electrocorder is easy; secure the various temperature probes to the equipment to be monitored, plug each into the datalogger connect the logic inputs to the rear of the datalogger;the digital inputs accepts +2V to +30Vdc as a logic 1, voltages below +2V are considered logic 0. The logger has a +5V (400mmA) output to power external signal conditioning circuitry.

Connect the USB lead to the PC and open the software. The DS-108 is powered from the PC USB port, so a separate power supply is not needed.

In the software set the sampling period. Note, the DS-108 sends all temperatures and digital input statuses to the PC every second,setting the sampling period does not vary this, it does however let you save the data less frequently, for example every 30seconds, Settable from 1 second to 60 seconds or 1 minute to 60minutes.

Once set the software will start to display and save the data from the datalogger. You can choose to view a dashboard with alarm levels set and shown or you can view a graph of the temperatures and digital inputs.




Datasheet
Case Studies
Instructions

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
