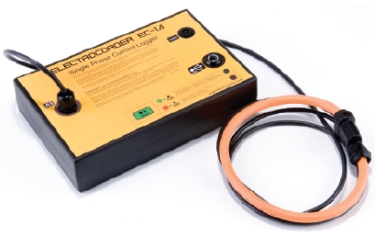

Electrocorder EC-1A AC Current Logger


  Single channel (A1), various ranges, 0.1A to 10kA
  Constant Sampling technique; misses very little data
  Complete with Electrosoft energy analysis software
  Sealed to IP65/NEMA 12/4

The Electrocorder range is designed to allow electrical distribution companies to cost effectively monitor current loads. This product will allow load problems to be highlighted quickly for further investigation.

Setting up the Electrocorder EC-1A is easy, suitable for semi-technical staff. Using the supplied (free) Windows software, Electrosoft; the location’s details are input to the unit’s memory and stored. Electrosoft will then print documentation allowing users to record and/or pass on delivery instructions to colleagues. All data is also stored in a database of dispatches and returns, which tracks the whereabouts of all units.

Why is the Electrocorder better than other similarly priced competitors? The Electrocorder range use a constant sampling technique, unlike the single reading of competitors. When the loggers start to record, they sample every channel 16 times per cycle, a cycle is 16ms at 60Hz and 20ms t 50Hz. At the end of each averaging period, 3 quantities are saved for each channel, the True RMS average, the Max, which is the highest cycle value during the period and the Min, lowest cycle value. This means that it will record all the peaks and troughs which are one cycle or longer.

When recording the Electrocorder will store the average current over the period chosen (1 sec to 60 min), it will also record the highest (max) & lowest (min) cycle values during that period.

The current levels are stored with dates and times. With the back-up battery, the Electrocorder can continue to record for 3 months.

The stored data is uploaded to a PC via the supplied USB cable. Using Electrosoft, the recorded current levels, dates & times can be viewed in both tabular and graphical form, exported to a spreadsheet or saved to file.


Datasheet


Electrocorder Range Presentation



Graphs can be printed showing the recorded levels and the allowable tolerance bands. These results may then be discussed with the customer. Electrosoft also provides an internal database which effectively manages the distribution of multiple units.

On the logger, recording is signified by a flashing green light. A red light advises users that the unit has completed recording.

This model is specifically designed to monitor one, two or three current channels. Allowing you to monitor the loading and energy consumption of the installation. There are many models of Electrocorder, to suit many logging situations and user’s requirements.

The product is supplied with one Rogowski transducer. Several models are available, the standard EC-1A and has a range of 10 – 1,000 A. Other ranges may be factory set.

Features

  Enables current and load problems to be highlighted for further investigation.
  Allows users to record load currents up to 10kAac, range is model dependent.
  One input channel, A1.
  Record IAvg, IMax & IMin. Data stored in non-volatile memory.
  Free software, Electrosoft.
  Recorded data is uploaded to a PC for analysis with Electrosoft.
  Memory capacity of 32,000 (true RMS) values per channel (10bit), up to 300 days continuous recording.
  Selectable averaging period to suit each situation, accurate to ±2% of reading.
  Kit includes Logger, Carry Case, Electrosoft, USB lead, ‘Current Transducer’, & Plug in mains 12Vdc PSU.
  Various models available:- EC-1A-10A (0.1 – 10A), EC-1A-50A(0.5 – 50A), EC-1A-100A(1 – 100A), EC-1A-1K (10 – 1kA), EC-1A-2K (20 – 2kA), EC-1A-3K (30 – 3kA), EC-1A-5K (50 – 5kA) and EC-1A-10K (100 – 10kA).
  Order code:- EC-1A-**-50-KIT (50Hz) and EC-1A-**-60-KIT (60Hz)

Part numbers in this range include EC-1A-FK-60-IP65-KIT, EC-1A-1K-60-IP65-KIT, EC-1A-2K-60-IP65-KIT, EC-1A-3K-60-IP65-KIT, EC-1A-FK-50-IP65-KIT, EC-1A-1K-50-IP65-KIT, EC-1A-2K-50-IP65-KIT, EC-1A-3K-50-IP65-KIT, EC-1A-50-IP65-KIT & EC-1A-60-IP65-KIT.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
