One voltage channel 300Vac, One current channel 500Aac
Constant Sampling technique; misses very little data
Complete with Electrosoft energy analysis software
Available as IP65/NEMA 12/4
The Electrocorder range is designed to allow electrical distribution
companies to cost effectively monitor single and three phase supplies. Our
products allow voltage problems to be highlighted quickly for further
investigation. The EC-2VA is designed to allow engineering staff to monitor
single phase voltage and current.
Setting up the Electrocorder EC-2VA is easy, suitable for semi-technical
staff. Using the supplied (free) Windows software, Electrosoft; the locationís
details are input to the unitís memory and stored. Electrosoft will then print
documentation allowing users to record and/or pass on delivery instructions
to colleagues. All data is also stored in a database of dispatches and returns,
which tracks the whereabouts of all units.
Why is the Electrocorder better than other similarly priced competitors? The
Electrocorder range use a constant sampling technique, unlike the single
reading of competitors. When the loggers start to record, they sample every
channel 16 times per cycle, a cycle is 16ms at 60Hz and 20ms at 50Hz. At
the end of each averaging period, 3 quantities are saved for each channel,
the True RMS average, the Max, which is the highest cycle value during the
period and the Min, lowest cycle value. This means that it will record all the
peaks and troughs which are one cycle or longer.
The voltage and current levels are stored with dates and times. With the
backup battery, the Electrocorder can continue to record for a year. On the
logger, recording is signified by a flashing green light. A red light advises
users that the unit has completed recording.
Electrocorder Range Presentation
When the logger has been returned to the power company, the stored data is
uploaded to a PC via the supplied RS-232 cable. Using Electrosoft, the
recorded voltage and current levels, dates & times can be viewed in both
tabular and graphical form, exported to a spreadsheet or saved to file.
Graphs can be printed showing the recorded levels and the allowable tolerance
bands. These results may then be discussed with the customer. Electrosoft
also provides an internal database which effectively manages the
distribution of multiple units.
This model is specifically designed to monitor one voltage channel and
one current. Allowing you to monitor the main voltage supply and the load
current, therefore enabling staff to determine whether a voltage problem is
load related or not.
There are many models of Electrocorder, to suit many logging situations and
Enables voltage and load problems to be highlighted for
Allows engineers to monitor & resolve single-phase voltage
One Voltage input (L1), one Current input (A1).
Voltage channels record VAvg, VMax & VMin.
Data stored in non-volatile memory.
Free software, Electrosoft.
Recorded data is uploaded via RS232 to a PC for analysis

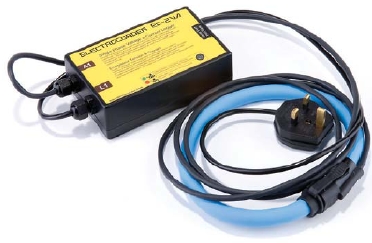

Kit includes Logger, Carry Case, Electrosoft, voltage lead,
300A current sensor & serial lead.
Memory capacity of 32,000 (true RMS) values per channel
(10bit), up to 300 days continuous recording.
Selectable averaging period to suit each situation, accurate to
Ī2% of reading.
Order code:- EC-2VA-50-KIT (50Hz) or EC-2VA-60-KIT (60Hz).
