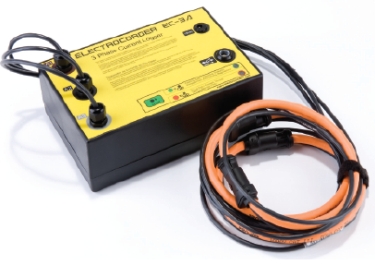

Electrocorder EC-3A Single & Three Phase Current/Load Logger
Three phase; 400A, 1kA, 2kA or 3kAac
Constant Sampling technique, misses very little data
Complete with Electrosoft energy analysis software
Available as IP65/NEMA 12/4
The Electrocorder range is designed to allow electrical distribution
companies to cost effectively monitor single and three loads. This product
will allow single and 3 phase loading and balancing problems to be
Setting up the Electrocorder EC-3A is easy, suitable for semi-technical staff.
Using the supplied (free) Windows software, Electrosoft; the location's details
are input to the unit's memory and stored. Electrosoft will then print
documentation allowing users to record and/or pass on delivery instructions
to colleagues. All data is also stored in a database of dispatches and returns,
which tracks the whereabouts of all units.
Why is the Electrocorder better than other similarly priced competitors?
The Electrocorder range use a constant sampling technique, unlike the
single reading of competitors. When the loggers start to record, they sample
every channel 16 times per cycle, a cycle is 16ms at 60Hz and 20ms at
50Hz. At the end of each averaging period, 3 quantities are saved for each
channel, the True RMS average, the Max, which is the highest cycle value
during the period and the Min, lowest cycle value. This means that it will
record all the peaks and troughs which are one cycle or longer.
When recording the Electrocorder will store the average voltages over the
period chosen (1 sec to 60 min), it will also record the highest (max) & lowest
(min) cycle values during that period.
The current levels are stored with dates and times. With the back-up battery,
the Electrocorder can continue to record for 3 months. A 12Vdc PSU input is
available, to allow for prolonged logging without battery power.
Electrocorder Range Presentation
The stored data is uploaded to a PC via the supplied USB cable. Using
Electrosoft, the recorded current levels, dates & times can be viewed in both
tabular and graphical form, exported to a spreadsheet or saved to file.
Graphs can be printed showing the recorded levels and the allowable tolerance
bands. These results may then be discussed with the customer. Electrosoft
also provides an internal database which effectively manages the
distribution of multiple units.
This model is specifically designed to monitor one, two or three current
channels. Allowing you to monitor the loading and energy consumption of
the installation. There are many models of Electrocorder, to suit many logging
situations and user's requirements.
The product is supplied with three Rogowski transducers. Four models are
available. The EC-3A-FK has a range of 5 to 400A, the EC-3A-1K has a
range of 10 - 1kA, the EC-3A-2K a range of 15 - 2kA and the EC-3A-3K a
range of 20 - 3kA. Other ranges may be factory set, normally up to around
10kA per phase.
Enables current and load problems to be highlighted for
Allows users to record load currents up to 3kAac, range is
Three current input channels (A1, A2, & A3).
Records Max, Min and Avg current on all 3 channels.
Data stored in non-volatile memory.
Recorded data is uploaded to a PC for analysis with
Free software, Electrosoft.
Kit includes Logger, Carry Case, Electrosoft software, three
'current transducers', USB lead & 12Vdc PSU.
Memory capacity of 32,000 true RMS voltage values per phase
(10 bit), up to 300 days continuous recording.
Selectable averaging period to suit each situation,
accurate to ±1% of range.
Four models available:- EC-3A-FK (5 - 400A range), EC-3A-1K (10 - 1kA range), EC-3A-2K (15 - 2kA range) and EC-3A-3K (20 - 3kA range).
Order code:- EC-3A-*K-50-KIT (50Hz) or EC-3A-*K-60-KIT (60Hz).
Part numbers in this range include EC-3A-FK-60-IP65-KIT, EC-3A-1K-60-IP65-KIT, EC-3A-2K-60-IP65-KIT, EC-3A-3K-60-IP65-KIT, EC-3A-FK-50-IP65-KIT, EC-3A-1K-50-IP65-KIT, EC-3A-2K-50-IP65-KIT, EC-3A-3K-50-IP65-KIT, EC-3A-FK-50-IP65-KIT (50Hz), EC-3A-FK-60-IP65-KIT (60Hz), EC-3A-1K-50-IP65-KIT (50Hz), EC-3A-1K-60-IP65-KIT (60Hz), EC-3A-2K-50-IP65-KIT (50Hz), EC-3A-2K-60-IP65-KIT (60Hz), EC-3A-3K-50-IP65-KIT (50Hz) and EC-3A-3K-60-IP65-KIT (60Hz).
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
