Single Phase 300Vac (Live/Hot to Neutral)
Constant Sampling technique; misses very little data
Complete with Electrosoft energy analysis software
Available as IP65/NEMA 12/4

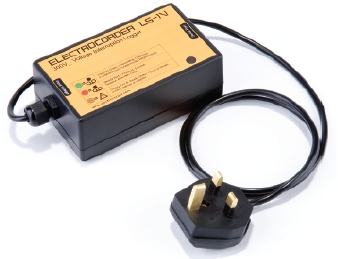

The LS-1V is designed to allow electrical power distribution companies
to cost effectively monitor their network for the loss and regain of supply
(interruptions) to their customers; based on loss of mains voltage.
The LS-1V will record the date and times of up to 16,000 interruptions
of supply with a minimum resolution of one second. The memory will
wrapround when full, allowing the logger to record ad-finitum.
Setting-up is easy; using the supplied software; simply input the
customer’s name and address or the location on the network where the will
monitor. This data is then stored in the unit’s memory. The user must input
the threshold voltage, which defines the loss of supply, for example on a
230V system, voltages below 175V may be considered as a loss of
supply, this can be input via the software.
The software will print the necessary documentation. All data is stored in a
database of dispatches and returns, so that users may track and record
the location of loggers.
Why is the Electrocorder better than other similarly priced competitors? The
Electrocorder range use a constant sampling technique, unlike the single
reading of competitors. When the loggers start to record, they sample every
channel 16 times per cycle, a cycle is 16ms at 60Hz and 20ms at 50Hz.
The Voltage Analysis conforms to the European recording standard
EN50160: 1994 - “Voltage characteristics of electricity supplied by
public distribution systems.”
Recording is shown by a flashing green LED. The LS-1V is in
a waterproof case, sealed to IP65.
When recording, the LS-1V will store the date, time and duration of
losses and regains of mains voltage supply.
With the back-up battery, the LS-1V can continue to record for 8 months
without mains supply during power cuts or interruptions. While mains voltage
is available the battery life is up to 10 years.
When the unit has been returned to the power company, the stored data is
uploaded to a PC via the supplied RS-232 cable. Using the software, the
recorded interruption’s dates & times can be viewed and printed in both
graphical and tabular form, exported (to a spreadsheet) or saved to file.
Graphs can be printed showing results and a statistical analysis is shown.
These results may then be discussed with the customer. The Software also
provides an internal database, which effectively manages the task of
monitoring the location of many units.
The product comes complete with Software, Serial Lead, Battery, User
Instructions, has a flying lead and is sealed to IP65.
Records the date and times of loss and regain of mains
Allows engineers to quickly and cost effectively monitor
Small, safe & easy to use, waterproof to IP65!
User set-able voltage threshold which defines the loss of
supply, e.g. loss can be user set as voltages below 100V.
Windows based software, displays tabular & graphical data.
Kit includes Logger, Electrosoft, Serial Lead & Instructions.
Recorded data is uploaded to a PC for analysis with supplied
free software - Electrosoft.
Software includes internal database to allow Engineers to trace
the whereabouts of units in the field.
Software allows graphical and statistical analysis of data.
Memory (non-volatile) capacity of 64k, can record up to
ORDER CODE:- LS-1V-IP65
