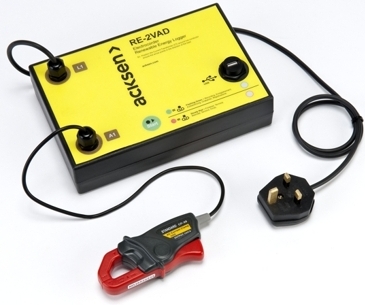

Electrocorder RE-2VAD Single Phase Voltage Directional Current Logger


  One voltage channel 300Vac, One current channel +/-30Aac
  Constant Sampling technique; misses very little data
  Complete with Electrosoft energy analysis software
  Available as IP65/NEMA 12/4

The RE-2VAD is designed to allow users to monitor single phase current import or export from local generation to and from the grid.

Setting up the Electrocorder RE-2VAD is easy, suitable for semi-technical staff. Using the supplied (free) Windows software, Electrosoft; the locationís details are input to the unitís memory and stored. Electrosoft will then print documentation allowing users to record and/or pass on delivery instructions to colleagues. All data is also stored in a database of dispatches and returns, which tracks the whereabouts of all units.

Why is the Electrocorder better than other similarly priced competitors? The Electrocorder range use a constant sampling technique, unlike the single reading of competitors. When the loggers start to record, they sample every channel 16 times per cycle, a cycle is 16ms at 60Hz and 20ms at 50Hz. At the end of each averaging period, 3 quantities are saved for each channel, the True RMS average, the Max, which is the highest cycle value during the period and the Min, lowest cycle value. This means that it will record all the peaks and troughs which are one cycle or longer.

The voltage and current levels are stored with dates and times. With the backup battery, the Electrocorder can continue to record for a year. On the logger, recording is signified by a flashing green light. A red light advises users that the unit has completed recording.

When the logger has finished logging, the stored data is uploaded to a PC via the supplied USB cable. Using Electrosoft, the recorded voltage and current levels, dates & times can be viewed in both tabular and graphical form, exported to a spreadsheet or saved to file.

Graphs can be printed showing the recorded levels and the allowable tolerance bands. These results may then be discussed with the customer. Electrosoft also provides an internal database which effectively manages the distribution of multiple units.



This model is specifically designed to monitor one voltage channel and the direction and magnitude of one current channel. Allowing you to monitor the main voltage supply and the direction of current, enabling you to see when you have exported power and when you have imported power.

There are many models of Electrocorder, to suit many logging situations and userís requirements.

Features

  Allows users to monitor local generation and demand.
  One voltage input (L1), one directional current input (A1).
  Records imported and exported power.
  Data stored in non-volatile memory.
  Free software, Electrosoft.
  Recorded data is uploaded via USB to a PC for analysis with Electrosoft.
  Kit includes Logger, Voltage input lead, one clamp-on CT, USB lead, software CD and carry case.
  Memory capacity of 32,000 (true RMS) values per channel (10bit), up to 300 days continuous recording.
  Selectable averaging period to suit each situation, accurate to Ī3% of reading.
  Order code:- RE-2VAD-5H-UK-IP43-KIT (50Hz), RE-2VAD-5H-EU-IP43-KIT (50Hz), RE-2VAD-5H-ZA-IP43-KIT (50Hz), RE-2VAD-5H-AZ-IP43-KIT (50Hz) or RE-2VAD-6H-NA-IP43-KIT (60Hz)


Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
