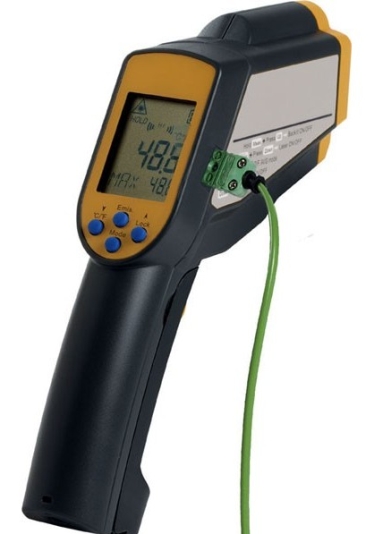

RayTemp 38 Infrared Thermometer


Ideal for high temperature use


  IR and K thermocouple probe socket
  wide temperature range -59.9 to 999.9C
  ideal for high temperature industrial applications
  target ratio 50:1 - ideal for measuring small targets
  RayTemp 38 is exclusive of probe

The RayTemp 38 Infrared Thermometer with probe socket is a professional IR thermometer that features dual laser dot alignment. The RayTemp 38 Infrared Thermometer contains a 50:1 optic ratio (target distance/diameter ratio), this gives users the ability to measure small targets from a distance. The user positions them self a safe and comfortable distance from the target, points the RayTemp 38 at the desired measurement surface, presses the button and they can then instantly read the temperature. The RayTemp 38 is perfect for measuring the temperature of ceiling vents and hot pipes in the HVAC industry or any other type of item that is difficult to reach. This tool gives the user the ability to measure most surfaces accurately and quickly.

The surface temperature over the range of -59.9 to 999.9C with a 0.1C (-9.9 to 199.9C) or 1C resolution can be measured using the RayTemp 38 Infrared Thermometer.

The RayTemp 38 also features an auto power off facility that switches the instrument off after 60 seconds, which helps save the battery life. This feature can be disabled, if required. Each RayTemp 38 unit incorporates a clear, easy to read, backlit custom LCD display that shows the user both the temperature and the emissivity. The thermometer incorporates a four-button keypad, allowing the user to choose the mode required, i.e. max, min, differential and average temperatures, view the max/min high and low alarms and adjust the emissivity from 0.1 to 1.0 in 0.01 increments (default set at 0.95).

The RayTemp 38 is two instruments in one as it incorporates a thermocouple socket that will accept a type K thermocouple probe. Each RayTemp 38 is supplied in a FREE protective ABS carrying case. An optional strong magnetic holder is also available. The holder screws into the bottom of the thermometer's housing, allowing the unit to be mounted onto a metal surface for continuous monitoring.


Downloads


Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
