Waterproof housing offering IP66/67 protection
Meets EN 12830, S & T , C & D, 1
Range -40 to 85 °C or 125 °C
Resolution 0.1 °C, high accuracy ±0.5 °C
The ThermaData logger mk II series consists of a comprehensive
range of portable data-loggers utilising the latest in electronic
technology. The ThermaData loggers are housed in waterproof,
ergonomic cases that are designed to meet IP66/67 protection.
The ThermaData logger mk II range offers the choice of either blind
data-loggers or data-loggers with a LCD display. Other options
include internal and external temperature sensors/probes. The
external probes can be either fixed or detachable via a waterproof
three-pin connector. The remote temperature probes are supplied
with a one metre PVC/PFA (fixed) or PUR/PVC (detachable) lead.
Each logger incorporates a red and green LED, the flashing green
LED indicates that the logger is active/logging and the flashing
red LED indicates that your customised pre-set alarms have been
ThermaData logger mk II software - The ThermaData logger is connected to a PC via a USB cradle. By clicking the relevant icon the data can be
downloaded and displayed either as a graph, table or summary. The information can be analysed by zooming in,
storing to disc or exporting as a text (.txt) file to other software packages.
The ThermaData logger software incorporates several useful functions, including the ability to display two traces on
a graph, the trace colours are user selectable. All files can be viewed as thumbnail icons for easy identification.
There are also options for customers requiring alternative languages.
The ThermaData logger software will work equally with all
ThermaData loggers except the RF version . The software is
both powerful and sophisticated, yet user-friendly enabling
temperature data to be organised and analysed to provide
management information. The software allows the user to
programme the logging sample/interval rate (0.1 to 255
minutes), the real-time clock, °C or °F, delayed start (maximum
23 hours, 59 minutes) or select a magnetic start option. It is
also possible to include a 32-character user ID for each logger.
By selecting continuous logging in the software options, it is
possible to start the ThermaData logger only once and never
have to reset its parameters again, even if downloaded regularly.
Unlike most low cost loggers, the ThermaData logger will
continue recording during and after downloading the data.
The ThermaData logger software is supplied with each USB
cradle. Please note: when initially ordering loggers it is necessary
to order at least one ThermaData logger cradle.
Model TB - blind with an internal sensor
Model TD - LCD with an internal sensor

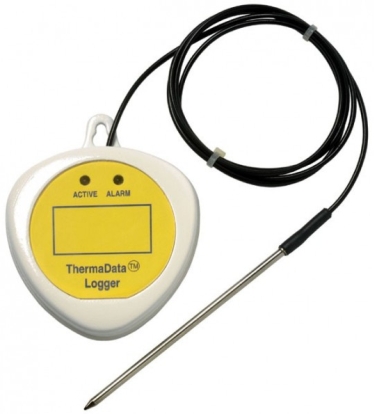

Model TBF - blind logger with an external fixed sensor
Model TDF - LCD with an external fixed sensor
Model TB1F - blind with an internal & external fixed sensor
Model TD1F - LCD with an internal & external fixed sensor
