HomeLaboratoryHeating & Control › Electrothermal MH8523B Paraffin Wax Dispenser

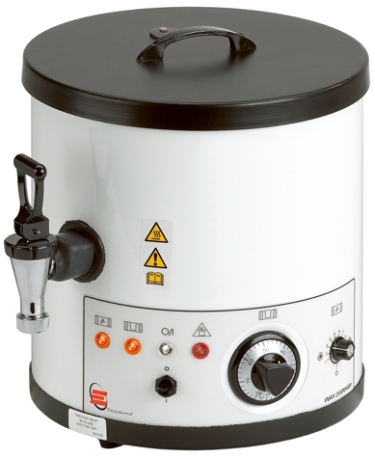

Electrothermal MH8523B Paraffin Wax Dispenser

The Electrothermal Paraffin Wax Dispenser provides immediate “Wax On Tap” for Pathology laboratories etc.

The problem of wax solidifying at the tap is completely eliminated by the incorporation of a thermally insulated tap heater with independent temperature control.

Capacity

  4.5 litres (1 gallon)

Temperature

  Ambient to 75C.
  Fitted with safety over-temperature cut-out at 105oC and non-resettable thermal fuse.

Temperature Control

  A built-in thermostat provides temperature control from ambient 75C.
  Tap Heater maintains temperature within the tap, keeping the wax molten.

Tap

  Swivel lever non-drip with replaceable filter

Warranty: One year, parts and labour

Certifications: CE


Data Sheet

Cat. No. Capacity Electrical Requirement
MH8523B 4.5 litres (1 gallon) 230V 50/60Hz
MH8523BX1 4.5 litres (1 gallon) 115v 50/60Hz
MH8523BX6 4.5 litres (1 gallon) 230v 50/60Hz, EU Plug


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
