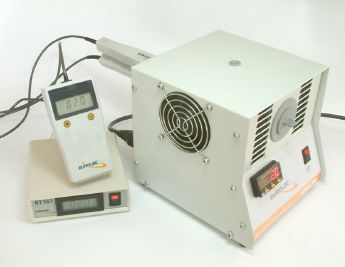

Eurolec CS173, CS174 & CS175 Temperature Calibration Sources


A simple to use, cost effective system for on site/laboratory calibration of both contact and non-contact (infrared) thermometers, to adhere to quality standards such as ISO9000 and HACCP.

The CS Series comprises of three dry block “black body” sources for calibration with a temperature control system and a pocket for a reference thermometer. The CS Series uses a PID controller with platinum film sensor to achieve an accurate and stable temperature.

Model CS173 features a range of +30.0 to +200.0°C and models CS174 & CS175 feature a range of 40°C below the ambient temperature (approx. -20.0°C) to +85.0°C.

All models display temperature in °C or °F and include RS232 output as standard and option for USB.

The CS174 & CS175 are also available with removable inserts – supplied with one insert with standard holes and one “blank” to be configured as required. Use reference CS174-IN & CS175-IN.

In addition, all models feature a 2 position Precision Accuracy Check (*PAC) function where the accuracy of the unit is confirmed at 2 preset points, by a key switch selection. A calibration certificate, traceable to national standards is supplied with all models.

For precision accuracy checking over an extended range, reference thermometers RT162 or PC Temp RT2 (0.01°C resolution) are recommended.



Data Sheet

Models

  CS173
  CS174
  CS174-IN
  CS175
  CS175-IN

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
