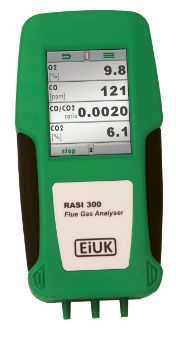

Eurotron Rasi 300C Flue Gas Analyser


A handheld and compact flue gas and combustion analyser, Eurotron's Rasi 300C features a long-life high CO cell and fine draught, perfect for heating engineers working on OIL and GAS appliance and for those servicing and installing BIOMASS boilers.

Features

  CO (H2 compensated) cell 0-10000 ppm
  long Life O2 cell
  Optional NOx measurement
  0.001 mbar fine draught resolution
  Ideal for BIOMASS boilers
  Touch screen colour display
  Standard Bluetooth communication
  5 years warranty
  1000 data memory

Sensors and probe

The RASI300C flue gas analyser is equipped as standard with O2 and CO (0-10000 ppm) H2 compensated sensors, temperature and differential pressure measurements and a standard 300 mm triple hose flue gas probe for simultaneous flue gas, draught and temperature measurement measurements.

NOx measurement

The RASI300C is “NOx ready” and can be installed with a 3rd sensor for measuring NO and display NOx measurements. Thanks to our new digital platform, the NO cell can be installed at any time with-out returning the analyser to us.

Fine Draught using same flue gas probe

The RASI300 flue gas analyser is equipped as standard with an high accuracy pressure sensor to provide fine draught measurement with 0.001 mbar resolution. If you are working on BIOMASS BOILERS this is a very important measurement that need to be taken in order to commission or service the system.More importantly, the draught measurement is taken and displayed simultaneously with the gas analysis using the same gas sampling probe. There is no need to change probe.

Plug and Play pre-calibrated field replaceable sensors

The RASI300C flue gas analyser employ our new MMS sensors digital platform, which allow for on site “easy swap” of the measurement sensors with-out sending the analyser to us. The sensor change do not require any calibration because the calibration value are held in the cell electronic. This important feature dramatically reduce the downtime of the analyser in case of sensor failure.


Data Sheet


Super easy and quick to use thanks to the simplified touch screen display

Thank you to the new smart automatic zeroing of the sensors, the analyser takes only 30-45 second to be ready to use once it has been switched on.

Once the analyser is switched on, the task menu provide the user with the standard and advanced measurement functions with-out the need to scroll between sub-menus. You can also pre-set your preferred configuration that can be recalled every time you need to use it. With a simple touch you can select from:

Gas measurement, let-by test, tightness test, CO ambient , Differential temperature, pressure and so on.

High resolution graphical touch screen colour display

The super bright touch screen display presents the data both in numerical and graphical format. Data are very easy to read also in very poor light conditions.

The simplified touch screen display makes the RSI300C flue gas analyser extremely easy to be used.

Powerful data memory, customer management and SD card

The RASI300C flue gas analyser offers many advanced features that can only be found in more expensive gas analysers:

  Up to 4000 data set on internal memory
  Export the saved data to SD card in csv format for direct read on a PC
  View saved data on the RASI300C display
  Customer management: view or create a customer list, save data under a specific customer and upload your customer list trough the SD card.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
