Eurotron Rasi 900 and Rasi 901 Emission Analysers



9 gases Portable Emission Analyser with NDIR Infrared Technology

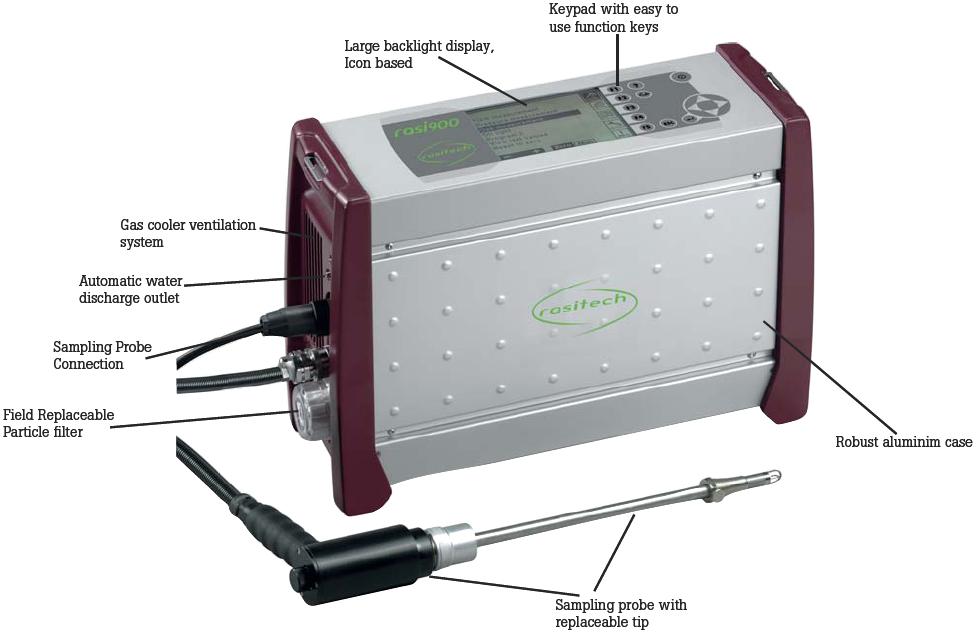

The Rasi 900 is without any doubt the most complete series of portable combustion/ emission analyser available in the marketplace now days. It combines NDIR non dispersive infrared technology with electrochemical measurement cells to ensure high level of accuracy, extreme flexibility, and the highest standard of performance.

Cutting Edge technology, outstanding design, rugged and versatile - The extreme flexible design, the choice of high accuracy selected sensor combined with the NDIR infrared technology, the superior integrated gas preparation system and the widest choice of gas sampling probes make with no doubt the RASI 900 the ideal tool for field emission monitoring.

  Advanced NDIR Technology
  Superior integrated gas preparation system for TRUE NOx measurement vital for ultimate accuracy
  Temperature Controlled heated sample line
  Backlight display, with zoom function , icon based
  Easy data logging with on-board automatic and user defined testing routines
  Powerful software package for uploading or downloading with online real time measurement view

Integrated Superior Gas Cooler with automatic water removal system - The system uses an high efficiency Peltier chiller to continuously condense and remove the water form the gas stream. The moisture laden gas enters the chiller and comes into contact with the chiller wall at its bottom. This way, the dry gases exit the top of the cooler without coming into contact with water. This allows for a sample that is most representative of the emissions being released as none of the gases are diluted into water phase. The internal surface of the cooler is highly polished to ensure that the water drops our rapidly. The internal peristaltic pump automatically removes the water at programmable interval depending on the water contest and allow for the analyser to be use for long term emission monitoring.

The cooler, not only provides conditions for better accuracy, but also highly protect the measurement cells, as no condensate is able to enter the internal gas path. The Internal cooler is able to cool down to 5 C an it is temperature is shown and monitored on the unit.


Data Sheet
Brochure

Ordering Information

944024 - RASI 901 emission analyser, equipped with 02, CO(H2), CO swith-off valve, CO purge, built-in gas cooler, peristaltic pump for automatic water removal, gas sampling pump, gas filter, internal rechargeable battery, 12 DVC cable connector, 8500 data memory, fast built-in printer, combustion air temperature probe, RS232 Cable, Software CD, power supply cord, differential pressure measurement, 100 g glass wool filter, nylon protective carrying case with adjustable shoulder strap. Up grade to: Maximum 6 electrochemical cells plus 1 Infrared Bench

944022 - RASI 900 emission analyser, equipped with 02, CO(H2), CO swith-off valve, CO purge, gas sampling pump, gas filter, internal rechargeable battery, 8500 data memory, fast built-in printer, combustion air temperature probe, RS232 Cable, Software CD, power supply cord, differential pressure measurement, nylon protective carrying case with adjustable shoulder strap. Upgrade to: Maximum 6 electrochemical cells plus 1 Infrared Bench

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
