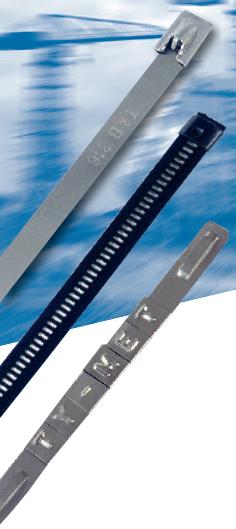

The Ty-Met stainless steel ties are the ultimate solution to install your cables in extreme conditions and hazardous areas, indoor and outdoor, such as the petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.
Ball-Lock Type - Standard widths, uncoated
The Ball-Lock Type stainless steel ties from Thomas & Betts are selflocking,
requiring no time consuming crimping or folding operations.
 Strong self-locking mechanism (stainless steel ball), with low insertion
force
Fast, easy and reliable installation
Standard widths (4.6 mm & 7.9 mm), suitable for most applications,
indoor and outdoor
Uncoated version, suitable for high temperature environments
2 grades of non-magnetic stainless steel: 304 grade for standard
applications and 316 grade (marine grade) for extra corrosion
resistance
Applications: installation of cables and pipes in extreme conditions
and hazardous areas, such as: petrochemical and food processing
industries, power stations, mining, shipbuilding, offshore
and other aggressive environments
Ball-Lock Type - Standard widths, fully coated
The Ball-Lock Type stainless steel ties from Thomas & Betts are selflocking,
requiring no time consuming crimping or folding operations.
Strong self-locking mechanism (stainless steel ball), with low insertion
force
Fast, easy and reliable installation
Standard widths (4.6 mm & 7.9 mm), suitable for most applications,
indoor and outdoor
Corrosion resistant 316 grade stainless steel (marine grade) for
high mechanical and chemical durability
Fully coated version with non-toxic, halogen free Polyester coating,
for a superior protection of cables and installer’s hands and
for an improved insulation between dissimilar materials.
Applications: installation of cables and pipes in extreme conditions
and hazardous areas, such as: petrochemical and food processing
industries, power stations, mining, shipbuilding, offshore
and other aggressive environments
Ball-Lock Type - Heavy-duty ties, uncoated
The Ball-Lock Type stainless steel ties from Thomas & Betts are selflocking,
requiring no time consuming crimping or folding operations.
Strong self-locking mechanism (stainless steel ball), with low insertion
force
Fast, easy and reliable installation
Heavy-duty version (12 mm & 16 mm of width), for extreme
applications, indoor and outdoor
Uncoated version, suitable for high temperature environments
Corrosion resistant 316 grade stainless steel (marine grade) for
high mechanical and chemical durability
Applications: installation of cables and pipes in extreme conditions
and hazardous areas, such as: petrochemical and food processing
industries, power stations, mining, shipbuilding, offshore
and other aggressive environments
Ball-Lock Type - Heavy-duty ties, fully coated
The Ball-Lock Type stainless steel ties from Thomas & Betts are selflocking,
requiring no time consuming crimping or folding operations.
Strong self-locking mechanism (stainless steel ball), with low insertion
force
Fast, easy and reliable installation
Heavy-duty version (12 mm & 16 mm of width), for extreme
applications, indoor and outdoor
Corrosion resistant 316 grade stainless steel (marine grade) for
high mechanical and chemical durability
Fully coated version with non-toxic, halogen free Polyester
coating, for a superior protection of cables and installer’s hands
and for an improved insulation between dissimilar materials.
Applications: installation of cables and pipes in extreme conditions
and hazardous areas, such as: petrochemical and food
processing industries, power stations, mining, shipbuilding,
offshore and other aggressive environments
Ladder Type - Uncoated
The Ladder Type stainless steel ties from Thomas & Betts have a flat,
low profile head for easy application.
Strong self-locking mechanism (pawl and ratchet), requires no
time consuming crimping or folding operations
Flat and low profile head (no sharp edge), for easy installation
Corrosion resistant 316 grade stainless steel (marine grade) for
high mechanical and chemical durability
Uncoated version for high temperature applications
Increased usable length (slots up to the end of the tail), allows
larger bundle diameters with the same tie length
Larger slot at the end, allows the use of a hook-type tool
Applications: installation of cables and pipes in extreme conditions
and hazardous areas, indoor and outdoor, such as: petrochemical
and food processing industries, power stations, mining,
shipbuilding, offshore and other aggressive environments
All-Round Bands
A new range of multi-purpose perforated bands, for all kind of
applications in industrial installation, maintenance, street lights, ...
New, user-friendly plastic cassette packaging, for easier unwinding
Easy to install around any shape of object: cable bundles, pipes,
poles,...
Can be secured with nuts, bolts, screws
Available in different widths and materials: galvanised steel, 316
grade stainless steel or aluminium
Galvanised steel bands are also available in coated version or with
straight edges
|
Ladder Type - Fully coated
The Ladder Type stainless steel ties from Thomas & Betts have a flat,
low profile head for easy application.
Strong self -lockingmechanism(pawl and ratchet), requires no time
consuming crimping or folding operations
Flat and low profile head (no sharp edge), for easy installation
Corrosion resistant 316 grade stainless steel for high mechanical
and chemical durability
Fully coated version with non-toxic, Halogen free Polyester coating,
for a superior protection of cables and installer’s hands and for
an improved insulation between dissimilar materials
Increased usable length (slots up to the end of the tail), allows larger
bundle diameters with the same tie length
Larger slot at the end, allows the use of a hook-type tool
Applications: installation of cables and pipes in extreme conditions
and hazardous areas, indoor and outdoor, such as: petrochemical
and food processing industries, power stations, mining,
shipbuilding, offshore and other aggressive environments
Releasable Type - Fully coated
The Releasable Type stainless steel ties from Thomas & Betts have a
unique buckle design that allows the ties to be unfastened for re-use.
Releasable and re-usable
Corrosion resistant 316 grade stainless steel for high mechanical and
chemical durability
Fully coated version with non-toxic, Halogen free Polyester coating,
for a superior protection of cables and installer’s hands and for an improved
insulation between dissimilar materials
Fast, easy and reliable installation - can be installed by hand and if
necessary, the slots at the end of the tie allow the use of a hook type
tool
The additional ears can be bent back over the fastened tie to increase
the tensile strength
Applications: installation of cables and pipes in extreme conditions
and hazardous areas, indoor and outdoor, such as: petrochemical
and food processing industries, power stations, mining, shipbuilding,
offshore and other aggressive environments
Stainless steel ID system
A new durable identification system, ideally suitable for tough
environments and extreme conditions, indoor and outdoor.
Sleeves with pre-embossed characters (letters, digits and symbols)
Pre-embossed characters are raised above the surface of the sleeve,
which makes them easy to read even when covered with dust, paint
or dirt
Dedicated strips can carry 6, 10 or 16 sleeves
Sleeves and strips are made of corrosion resistant 316 grade stainless
steel (marine grade), for high mechanical and chemical durability
The sleeves can be mounted onto the carrier strips (which will be
secured by Ty-MetTM stainless steel ties) or directly onto Ty-Met™
stainless steel ties having a width up to 7.9 mm
Bands on reel with separate heads
A new range of stainless steel band on reel with separate heads, for a
cost saving installation without waste.
Bands and heads are made of corrosion resistant 316 grade stainless
steel, for high mechanical and chemical durability
Bands are fully covered with a non-toxic, halogen free black
Polypropylene sheath, for a superior protection of cables and installer’s
hands, and for an improved insulation between dissimilar
materials
Cost saving and flexible: the 25-metre reels allow a customised
installation (no waste) around all sizes and shapes of objects
Dedicated separate heads are easy to install
Available in 5 widths up to 19.1 mm, to suit a wide range of
applications
