HomeLaboratoryFurnaces, Ovens & Incubators › Genlab Drying/Warming Cabinets


Genlab Drying/Warming Cabinets


The GENLAB Drying / Warming cabinets are suitable for drying a range of items such as glassware and instruments and any general purpose warming applications.

Two variations are available which are the standard non-insulated units and insulated units for improved efficiency plus energy and cost savings.


Features

  4 sizes: 125 to 1000 litres
  Maximum temperature 50degC above ambient
  Easy clean powder coated body
  Thermostat control for set temperature
  Toughened glass doors
  Fan circulation on 500 & 1000 litre
  Full two year warranty
  C.E. compliant
  Models in this range include the DC125, DC250, DC500 and DC1000 for non-insulated and the IWC125, IWC200, IWC425 and IWC885 for insulated.

Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint.

Fitted with adjustable shelf runners, removable plated wire grid shelves and ventilation outlets.

The insulated range of units give far greater temperature control, allowing greater accuracy during the drying and warming process.

The resulting reduction in energy requirements gives a performance saving of over 30% compared to the non-insulated range, which significantly reduces the running costs on these models, making them both highly efficient and very cost effective.

The 125 and 250 litre models have sliding, toughened glass doors.

The 500 and 1000 litre models have hinged, toughened glass doors.


Data Sheet
Operating & Service Manual for DC125, DC250, IWC100 & IWC200
Operating & Service Manual for DC500, DC1000, IWC425 & IWC885


125 litre Cabinet (DC125)

Controls

Control is via a direct reading thermostat with calibrated scale and tamper proof lock. The units also have a mains switch with indicator and heat indicator.

As an option an Extractor fan system can be fitted to the top of the 500 and 1000 litre units.

This increases the throughput of air and reduces the overall drying time.

Heating

Heated by Incoloy sheathed elements positioned in the base of the unit.

The 500 and 1000 litre models have fan assistance as standard.

Options

  Insulated range with increased accuracy and savings in running costs.
  Extraction system on 500 & 1000 litre units


1000 litre Cabinet (DC1000)

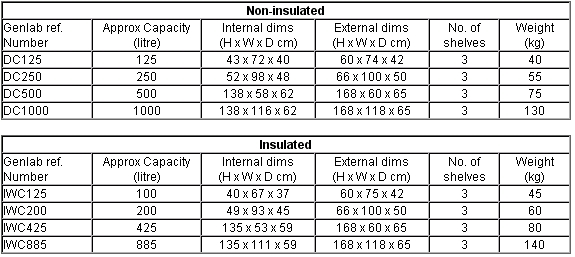

Specifications


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
