Genlab Dual Purpose Ovens & Incubators


The GENLAB Dual Purpose Oven/Incubator combines the advantage of two temperature ranges in one unit through the use of a simple high/low switch.

Higher temperatures for oven or steriliser use on the high setting and standard incubator settings on the low range.


Features

  10 sizes 6 to 200 litres
  Temperature range: Ambient +5deg to 250degC (Dual Range)
  Fluctuation +/- 0.25degC @ 37degC/+/- 0.75degC at 100 degC
  Easy clean powder coated body
  Aluminium coated mild steel chamber
  Direct reading thermostat
  Safety overheat thermostat
  Full two year warranty
  C.E. compliant

Design

This cost effective, dual purpose oven/incubator combines the advantage of two temperature ranges in one unit through the use of a simple high/low switch.

Higher temperatures for oven or sterilise use on the high setting and standard incubator settings on the low range.

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

Fitted with fixed shelf runners and removable plated wire grid shelves. The top vent is fitted with a clip to hold a mercury in glass thermometer.

The vertical style units are fitted with the controls below the door, the horizontal style units with the controls fitted on the side.

Heating

Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units.

The 200 litre units have fan circulation as standard.


Data Sheet


30 litre dual purpose Oven/Incubator (MINIS/30)

Controls

The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.

Options include a PID Microprocessor controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature.

Options

  Stainless steel chamber
  Fan circulation (30 litre +)
  Microprocessor digital controller with dual display of set point and actual temperature
  Other accessories available on request

Ordering

The vertical style oven/incubators are the MINIS/6, MINIS/18, MINIS/30, MINIS/40, MINIS/50 and MINIS/75. The horizontal style oven/incubators are the DP/50, DP/75, DP/100, DP/125, DP/150 and DP/200/F.

All units have CLAD interior with thermostatic control as standard.

Where options are required simply add the option code to the original reference.

i.e MINIS/75 with stainless steel interior and digital controller becomes MINIS/75/SS/DIG


50 litre dual purpose Oven/Incubator (MINIS/50)

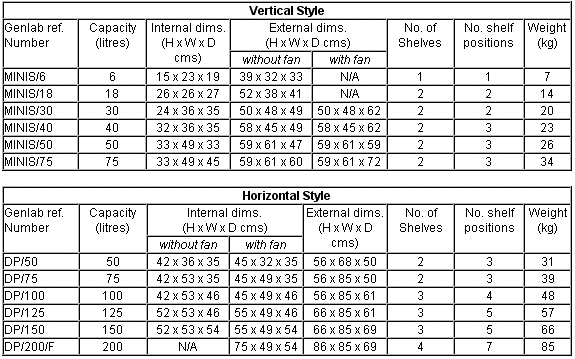

Specifications


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
