Genlab General Purpose Ovens

The GENLAB General Purpose Ovens offer a range of highly efficient, reliable, cost effective units to suit most drying, warming and general laboratory applications.


  10 sizes 6 to 200 litres
  Temperature range: 40 to 250degC
  Fluctuation +/- 0.75degC
  Easy clean powder coated body
  Aluminium coated mild steel chamber
  Direct reading thermostat
  Safety overheat thermostat
  Full two year warranty
  C.E. compliant


The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

Fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a mercury-in-glass thermometer.

The vertical style units are fitted with the controls below the door, the horizontal style units with the controls fitted on the side.


Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units.

The 200 litre units have fan circulation as standard.


The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.

Options include a PID Microprocessor controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature.

Data Sheet

50 litre oven (MINO/50)


  Stainless steel chamber
  Fan circulation (30 litre +)
  Microprocessor digital controller with dual display of set point and actual temperature
  Other accessories available on request

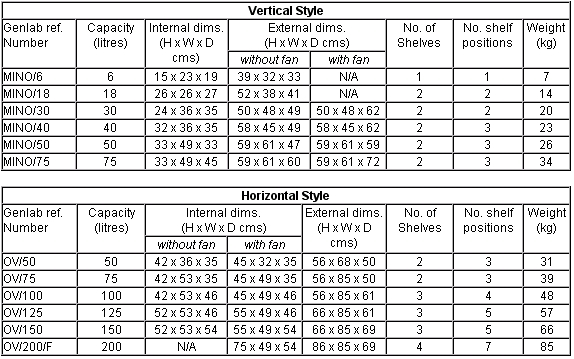

The vertical style ovens in this range are the MINO/6, MINO/18, MINO/30, MINO/40, MINO/50 AND MINO/75. The horizontal style ovens in this range are the OV/50, OV/75, OV/100, OV/125, OV/150 and OV/200/F.

All units have CLAD interior with thermostatic control as standard.

Where options are required simply add the option code to the original reference.

i.e MINO/75 with stainless steel interior and digital controller becomes MINO/75/SS/DIG

Option Codes

  Stainless steel / SS
  Fan circulation / F
  Digital control system / DIG

50 litre Oven with Digital Controls (OV/50/DIG)


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
