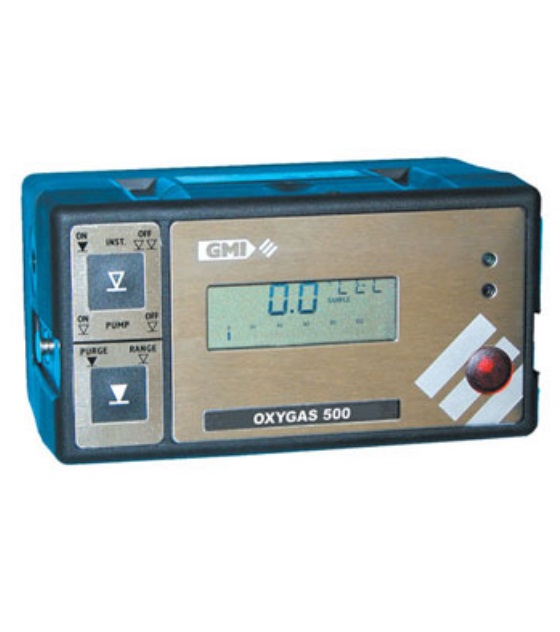

GMI Oxygas 500

The GMI Oxygas 500 compliments the Gascoseeker 500 with a similar performance, measuring % LEL and % volume flammable hydrocarbons, but with the addition of oxygen for either gas/air or gas/nitrogen/air purging.

Key Features

  • Simple 2-button operation
  • Automatic hydrocarbon range selection
  • Gas/Air and Gas/Nitrogen/ Air purge mode
Get a Quote
GMI

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The Oxygas 500 has the following additional features; automated zero during start-up, manually selectable purge mode.

The P-500 variant has an additional part per million (ppm) range of methane.

The Oxygas 500 is easy to use with very simple training, as the operation of the instrument follows the operation of the purge cycle. The rugged design allows the Oxygas 500 to be used in harsh environments. The instrument is also fully compatible with our range of calibration software and equipment.

Applications:

  • • Leak detection

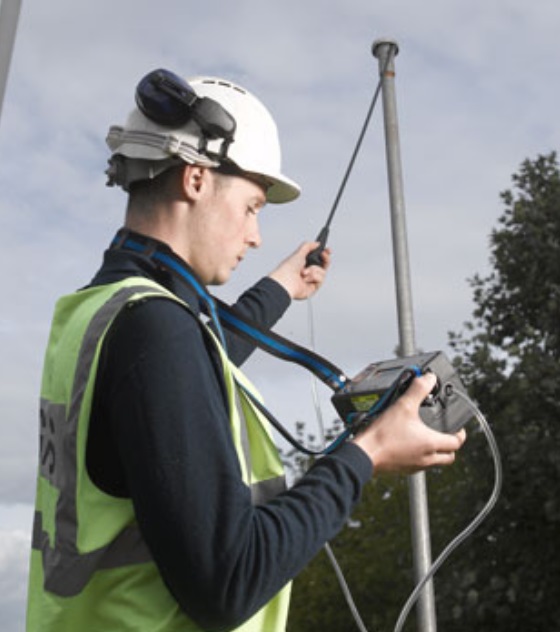

  • • Bar hole survey
  • • Gas/air or gas/nitrogen/air purging
  • • Gas escape detection
  • • Hot work permitting
  • • Leak source detection (ppm variant)

Oxygas 500
  • 42501X Oxygas 500 LEL, VOL, O2

  • 42501XR Oxygas 500R " " Rechargeable

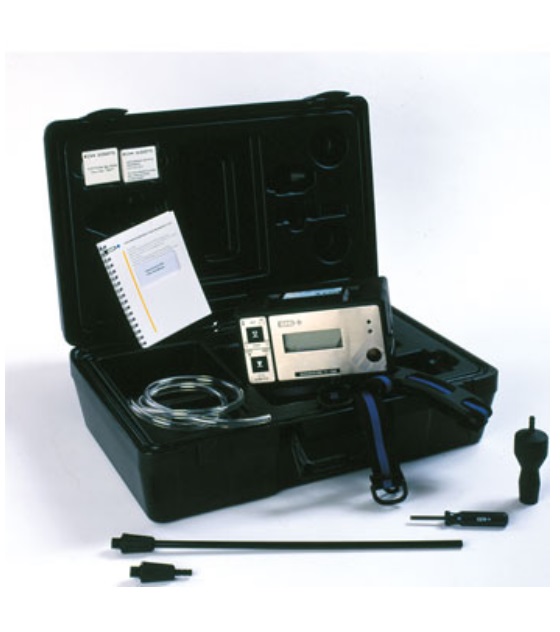

  • Complete with: Dry cell batteries (not USA) or NiCad Pack, harness, hex driver, 1.5Mt clear tubing and operator handbook. G500 carrying case, 35cm probe solid end, probe handle assembly, sample line adaptor and 20 cotton filters.

  • 42501P Oxygas P 500 PPM, LEL, VOL, O2

  • 42501PR Oxygas P 500R " " Rechargeable

  • Complete with: Dry cell batteries (not USA) or NiCad Pack, harness, hex driver, 1.5Mt clear tubing and operator handbook. G500 carrying case, 35cm probe solid end, probe handle assembly, sample line adaptor and 20 cotton filters.

Accessories
  • 13844 Standard Charger c/w Universal Power Supply

  • 12481 Probe Handle complete with Filters

  • 12480 35cm Plastic Probe Solid End (General Leak Detection)

  • 12688 Sample Line Adaptor

  • 12712 Clear Sample Line (per metre)

  • 12451 Hex Driver for Base Screws

  • 12370 Carrying Harness

  • 13405 Carrying Case

  • 12358 Hydrophobic Filter

  • 10077 Cotton Filters (Box / 10)

  • 42621 User Handbook
