Grant Instruments GR150 High Performance Series Stirred Water Baths/Circulators


This product is now obsolete. Please click here to see the current options.

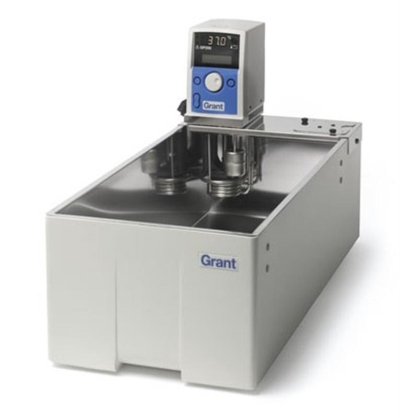

The Grant Instruments Optima GR150 series of digitally controlled stirred water baths and circulators provides outstanding performance for routine and sophisticated applications requiring accurate temperature control up to a maximum of 150 degC.

Grant Instruments GR150 series systems combine the powerful and versatile Grant Instruments Optima GR150 digital immersion thermostat with a choice of three economy plastic (P) tanks or five stainless steel (S) tanks with different capacities.

The Grant Instruments GR150 immersion thermostat incorporates Intelligent Control Optimisation (ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making GR150 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. The temperature range and heater power are automatically limited according to the liquid type selected.

The GR150 control unit has a host of powerful and convenient programming features for optimum application flexibility. These include a convenient heater timer for early starts/late shutdowns, a programmable relay for switching external devices on/off, option for remote temperature monitoring, RS232 interface for PC communication and data collection, and memory capacity for one program of up to 30 segments.

  Dual display: bright LED for temperature display plus 2-line 16 character LCD for easy programming
  Twin heaters, 2kW heater power for fast heat up
  Pt1000 external probe socket for remote monitoring
  Powerful integral pump, maximum flow 17L/min
  Variable high and low temperature alarm settings - configurable to switch a relay
  Choice of 5 operator languages
  Optional Labwise PC software for program set-up, data logging and real-time graphing
  Maximum cooling/heating range (dependent on tank size): ambient +5 to 99 degC with plastic (P) tank, or -15 to 150 degC with stainless steel (S) tank
  Stability +/- 0.005 degC
  Models include GR150-S5, GR150-S12, GR150-S18, GR150-S26, GR150-S38, GR150-P5, GR150-P12 and GR150-P18.



Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
