Grant Instruments Heated Circulating Baths


A cost-effective range of multi-purpose systems combining Grants legendary quality and reliability. Precise temperature control for a wide range of laboratory applications.

  Accurate and safe temperature control for samples and users
  Intuitive programming and thoughtful design features makes working with Grant stirred baths and circulators easy
  Robust, durable construction for longevity, reliability and long-term low cost of ownership
  A complete range 32 models to cover basic through to sophisticated needs, each model represents excellent value for money

Grant stirred baths and circulators provide a source of precision heating and cooling for many routine and sensitive analytical procedures including sample incubation, calibration and quality control testing. All models from the TC120 upwards are suitable for use as both open and closed loop circulators (i.e. remote vessel open or closed).

Any of the four Grant Optima digital thermostats can be combined with any of eight Grant tanks (five stainless steel and three plastic) to provide a choice of 32 models.

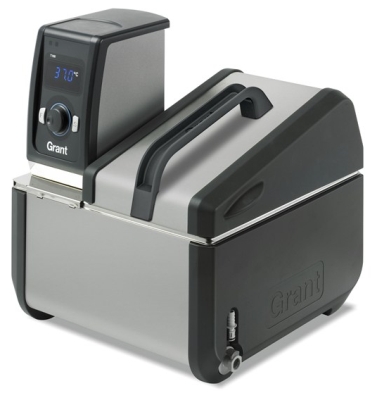

T100 Series Heated Circulating Baths

Well specified entry-level model with digital thermostatic control unit and stainless steel tank for straightforward laboratory applications requiring high precision temperature control.

Grant T100 series systems offer a choice three economy plastic (P) tanks or five stainless steel (ST) tanks with different capacities combined with the Grant Optima T100 digital thermostat for accurate temperature control. The Grant T100 immersion thermostat incorporates Intelligent Control Optimisation(ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making T100 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices.

Tank Options

  T100ST5
  T100ST12
  T100ST18
  T100ST26
  T100ST38
  T100P5
  T100-P12
  T100P18

TC120 Series Heated Circulating Baths

Versatile mid-range model with digital thermostatic control unit and stainless steel tank and a comprehensive specification to suit most applications for high precision temperature control.

Grant TC120 series systems combine the versatile Grant Optima TC120 digital heating circulator with a choice of three economy plastic (P) tanks or five stainless steel (ST) tanks with different capacities.

The Grant TC120 heating circulator incorporates Intelligent Control Optimisation(ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making TC120 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. It includes a convenient timer function for reaction timing and a variable high temperature alarm setting. The temperature range and heater power are automatically limited according to the liquid type selected.

Tank Options

  TC120ST5
  TC120ST12
  TC120ST18
  TC120ST26
  TC120ST38
  TC120P5
  TC120P12
  TC120P18


Product Catalogue


TX150 Series Heated Circulating Baths

The Grant Optima TX150 series of digitally controlled heated circulating baths provides outstanding performance for routine and sophisticated applications requiring accurate temperature control up to a maximum of 150C.

Grant TX150 series systems combine the powerful and versatile Grant Optima TX150 digital heating circulator with a choice of three economy plastic (P) tanks or five stainless steel (ST)tanks with different capacities.

The Grant TX150 heating circulator incorporates Intelligent Control Optimisation (ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making TX150 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. The temperature range and heater power are automatically limited according to the liquid type selected.

The TX150 control unit has a host of powerful and convenient programming features for optimum application flexibility. These include a convenient heater timer for early starts/late shutdowns, a programmable relay for switching external devices on/off, option for remote temperature monitoring, USB interface for PC communication and data collection, and memory capacity for one program of up to 30 segments.

Tank Options

  TX150ST5
  TX150ST12
  TX150ST18
  TX150ST26
  TX150ST38
  TX150P5
  TX150P12
  TX150P18

TXF200 Series Heated Circulating Baths

The Grant Optima TXF200 series of digitally controlled stirred heated circulating baths provides outstanding performance for routine and sophisticated applications requiring accurate temperature control up to a maximum of 200C.

Grant TXF200 series systems combine the powerful and versatile Grant Optima TXF200 digital heating circulator with a choice of three economy plastic (P) tanks or five stainless steel (ST) tanks with different capacities.

The Grant TXF200 heating circulator incorporates Intelligent Control Optimisation(ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making TXF200 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. The temperature range and heater power are automatically limited according to the liquid type selected.

The TXF200 control unit has a host of powerful and convenient programming features for optimum application flexibility. These include a convenient heater timer for early starts/late shutdowns, a programmable relay for switching external devices on/off, option for remote temperature monitoring, USB interface for PC communication and data collection, and memory capacity for 10 programs of up to 100 segments each.

Tank Options

  TXF200ST5
  TXF200ST12
  TXF200ST18
  TXF200ST26
  TXF200ST38
  TXF200P5
  TXF200P12
  TXF200P18

Ordering Information


GENERAL PURPOSE STIRRED WATER BATHS (T100 MODELS)

5l plastic tank & immersion thermostat, ambient +15C to 99C T100-P5
12l plastic tank & immersion thermostat, ambient +5C to 99C T100-P12
18l plastic tank & immersion thermostat, ambient +5C to 99C T100-P18
5l stainless steel tank & immersion thermostat, ambient +15C to 100C T100-ST5
12l stainless steel tank & immersion thermostat, 0C* to 100C T100-ST12
18l stainless steel tank & immersion thermostat, 0C* to 100C T100-ST18
26l stainless steel tank & immersion thermostat, 0C* to 100C T100-ST26
38l stainless steel tank & immersion thermostat, 0C* to 100C T100-ST38

GENERAL PURPOSE STIRRED WATER BATH WITH EXTERNAL CIRCULATION (TC120 MODELS)

5l plastic tank & TC120 immersion thermostat, ambient +15C to 99C TC120-P5
12l plastic tank & TC120 immersion thermostat, ambient +5C to 99C TC120-P12
18l plastic tank & TC120 immersion thermostat, ambient +5C to 99C TC120-P18
5l stainless steel tank & TC120 immersion thermostat, ambient +15C to 120C TC120-ST5
12l stainless steel tank & TC120 immersion thermostat, 0C* to 120C TC120-ST12
18l stainless steel tank & TC120 immersion thermostat, 0C* to 120C TC120-ST18
26l stainless steel tank & TC120 immersion thermostat, -15C* to 120C TC120-ST26
38l stainless steel tank & TC120 immersion thermostat, -15C* to 120C TC120-ST38

ADVANCED STIRRED WATER BATHS WITH EXTERNAL CIRCULATION (TX150 MODELS)

5l plastic tank & TX150 immersion thermostat, ambient +15C to 99C TX150-P5
12l plastic tank & TX150 immersion thermostat, ambient +5C to 99C TX150-P12
18l plastic tank & TX150 immersion thermostat, ambient +5C to 99C TX150-P18
5l stainless steel tank & TX150 immersion thermostat, ambient +15C to 150C TX150-ST5
12l stainless steel tank & TX150 immersion thermostat, 0C* to 150C TX150-ST12
18l stainless steel tank & TX150 immersion thermostat, 0C* to 150C TX150-ST18
26l stainless steel tank & TX150 immersion thermostat, -15C* to 150C TX150-ST26
38l stainless steel tank & TX150 immersion thermostat, -15C* to 150C TX150-ST38

ADVANCED STIRRED WATER BATHS WITH EXTERNAL CIRCULATION (TXF200 MODELS)

5l plastic tank & TXF200 immersion thermostat, ambient +15C to 99C TXF200-P5
12l plastic tank & TXF200 immersion thermostat, ambient +5C to 99C TXF200-P12
18l plastic tank & TXF200 immersion thermostat, ambient +5C to 99C TXF200-P18
5l stainless steel tank & TXF200 immersion thermostat, ambient +15C to 200C TXF200-ST5
12l stainless steel tank & TXF200 immersion thermostat, 0C* to 200C TXF200-ST12
18l stainless steel tank & TXF200 immersion thermostat, 0C* to 200C TXF200-ST18
26l stainless steel tank & TXF200 immersion thermostat, -15C* to 200C TXF200-ST26
38l stainless steel tank & TXF200 immersion thermostat, -15C* to 200C TXF200-ST38

* Operation at or below ambient requires C1G, C2G or CW5 accessory cooling

HEATING CIRCULATORS - Please specify UK, Euro, Aus or US lead

Heating circulator digital, general purpose 0C* to 100C T100
Heating circulator digital, general purpose -20C* to 120C, pump TC120
Heating circulator digital, advanced, programmable, -50C* to 150C, pump TX150
Heating circulator digital, advanced, programmable (10), -50C* to 200C, powerful multi-stage pump TXF200
Heating circulator digital, general purpose 0C* to 100C T clamp included T100T
Heating circulator digital, general purpose -20C* to 120C, pump T clamp included TC120T
Heating circulator digital, advanced, programmable, -50C* to 150C, pump T clamp included TX150T
Heating circulator digital, advanced, programmable (10), -50C* to 200C, powerful multi-stage pump T clamp included TXF200T

N.B. T Clamp allows independent use of circulators T-CLAMP
* Operation at or below ambient requires accessory cooling

TANKS

Tank plastic 5 litres P5
Tank plastic 12 litres P12
Tank plastic 18 litres P18

Stainless steel drain tap on 12,18, 26 & 38L models, bridge plate included

Tank stainless steel 5 litres ST5
Tank stainless steel 12 litres ST12
Tank stainless steel 18 litres ST18
Tank stainless steel 26 litres ST26
Tank stainless steel 38 litres ST38
Tank stainless steel 12 litres no drain tap ST12ND

ACCESSORIES FOR STIRRED BATHS

Software for programming TX150/TXF200, GR150/GP200 includes USB & RS232 cable Labwise

Bridge plates for use with stainless steel tanks

Bridge plate fits G Optima heating circulator models to ST5 tank G-BTS
Bridge plate fits G Optima heating circulator models to ST12, 18, 26 & 38 tanks G-BTL
Bridge plate fits G Optima heating circulator models to S5 tanks G-BSS
Bridge plate fits G Optima heating circulator models to S12, 18, 26, 38 tanks G-BSL Bridge plate replacement fits T Optima heating circulator models to ST5 tank T-BTS
Bridge plate replacement fits T Optima heating circulator models to ST12, 18, 26 & 38 tanks T-BTL
Bridge plate fits T Optima heating circulator models to S5 tank T-BSS
Bridge plate fits T Optima heating circulator models to S12, 18, 26 & 38 tanks T-BSL
Bridge plate fits T Optima heating circulator models to Y6 & W6 tanks T-BYWS
Bridge plate fits T Optima heating circulator models to Y14, 28 & 38 tanks also W14, 28 & 38 tanks T-BYWL

Bridge plates for use with plastic tanks

Bridge plate fits G Optima heating circulator models to P5 tank G-BPS
Bridge plate fits G Optima heating circulator models to P12 & 18 G-BPL
Bridge plate replacement fits T Optima heating circulator models to P5 tank T-BPS
Bridge plate replacement fits T Optima heating circulator models to P12 & 18 tanks T-BPL

Lids

Lid gabled stainless steel with hinges for ST12 bath STL12
Lid gabled stainless steel with hinges for ST18 and ST26 baths STL26
Lid gabled stainless steel with hinges for ST38 bath STL38
Lid flat stainless steel no hinges for ST5 bath STL5
Lid flat stainless steel no hinges for P5 bath PL5
Lid pitched lift-off stainless steel for S12 and ST12 baths, recommended for continuous boiling of water LST12
Lid pitched lift-off stainless steel for S18/S26, ST18/26 baths, recommended for continuous boiling of water LST26
Lid pitched lift-off stainless steel for S38 and ST38 baths, recommended for continuous boiling of water LST38
Lid plastic flat no hinges for P12 bath PL12
Lid plastic flat no hinges for P18 bath PL18

Polypropylene spheres (pack of 300) PS20

Test tube racks

Test tube rack for 5 litre baths for 10 to 13mm tubes QR-13
Test tube rack for 5 litre baths for 16 to 19mm tubes QR-19
Test tube rack for 5 litre baths for 24mm tubes QR-24
Test tube rack for 5 litre baths for 30mm tubes QR-30
Test tube rack for 5 litre baths for 0.5ml microcentrifuge tubes QR-SE
Test tube rack for 5 litre baths for 1.5ml microcentrifuge tubes QR-LE
Test tube rack for 12, 18, 26 and 38 litre baths for 10 to 13mm tubes VR-13
Test tube rack for 12, 18, 26 and 38 litre baths for 16 to 19mm tubes VR-19
Test tube rack for 12, 18, 26 and 38 litre baths for 24mm tubes VR-24
Test tube rack for 12, 18, 26 and 38 litre baths for 30mm tubes VR-30
Test tube rack for 12, 18, 26 and 38 litre baths for 0.5ml microcentrifuge tubes VR-SE
Test tube rack for 12, 18, 26 and 38 litre baths for 1.5ml microcentrifuge tubes VR-LE

Raised shelves

Raised shelves for ST12 baths RS14
Raised shelves for ST18 baths RS22
Raised shelves for ST26 baths RS28
Raised shelves for ST38 baths RS38

Draining siphon SY1

Accessory vertical turbine pumps - Please specify UK, Euro or Aus lead

Vertical turbine pump fits ST5, 1000mbar pressure (120V please enquire) VTP1-FLST5
Vertical turbine pump fits ST12, 1000mbar pressure (120V please enquire) VTP1-FLST12
Vertical turbine pump fits ST18 & ST26, 1000mbar pressure (120V please enquire) VTP1-FLST26
Vertical turbine pump fits ST5, 1650mbar pressure (No 120V) VTP2-FLST5
Vertical turbine pump fits ST12, 1650mbar pressure (No 120V) VTP2-FLST12
Vertical turbine pump fits ST18 & ST26, 1650mbar pressure (No 120V) VTP2-FLST26

Accessory cooling systems - Please specify UK, Euro, Aus or US lead

Refrigerated immersion cooler 0 to 40C C1G
Refrigerated immersion cooler -15 to 40C (not suitable for 5L or 12L tanks) C2G
Heat exchange coil CW5

External temperature probe

Plastic flexible temperature probe external for use with TX150, TXF200
TXPEP Stainless steel temperature probe external for use with TX150, TXF200 TXSEP

Pump connectors

Pump conn. plastic replacement inlet/outlet. Fits tubing 9mm inner dia. Temp range -50 to 200C P-M6
Pump conn. plastic replacement inlet/outlet. Fits tubing 15mm inner dia. Temp range -50 to 200C P-M11
Pump conn. stainless steel inlet/outlet, M16 x 1 male. Fits M16 hose. Temp range -50 to 200C M-M16
Pump conn. metal inlet/outlet, dual seal super rapid 4mm. Fits semi rigid tubing 4mm outer dia. T range -20 to 100C M-SR4
Pump conn. metal inlet/outlet, dual seal super rapid 6mm. Fits semi rigid tubing 6mm outer dia. T range -20 to 100C M-SR6
Pump conn. metal inlet/outlet, dual seal super rapid 8mm. Fits semi rigid tubing 8mm outer dia. T range -20 to 100C M-SR8
Pump conn. metal inlet/outlet, hose barb 7mm. Fits flexible tubing 7mm inner dia. Temp range -40 to 120C M-HB7
Pump conn. metal inlet/outlet, hose barb 9mm. Fits flexible tubing 9mm inner dia. Temp range -40 to 120C M-HB9
Pump conn. metal inlet/outlet, hose barb 12mm. Fits flexible tubing 12mm inner dia. Temp range -40 to 120C M-HB12
Pump inlet/outlet plate, metal 1/4 " BSP/G1/4 female. Temp range -50 to 200C M-UC



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.


Back To Last Page


Grant Instruments

Circulating Baths

LT ecocool Refrigerated/Heating Circulating Baths
Heated Circulating Bath Range
RC Series Recirculating Chillers
Refrigerated Circulating Bath Range

Unstirred Water Baths

JB Academy
JB Nova
SBB Aqua Plus Series
SUB Aqua Pro

Shaking Water Baths

LSB Aqua Pro
OLS Aqua Pro

Ultrasonic Water Baths

XUB Series
XUBA Series

Sous Vide

Expert Range Sous Vide Water Baths
SV200 Portable Immersion Circulator

Inspissators

TBT-T100IN

Dry Block Heaters

BTD Dry Block Heating System
BT5D Digital Block Heater
QBA Series (Analogue)
QBD/QBH Series (Digital)

High Temperature Bath/Circulators

HED Series

Flow Heaters

FH16D

Obsolete Products

BTA Dry Block Heating System
GD100 Series (Digital)
GD100R Series (Digital)
GD120 Series (Digital)
GD120R Series (Digital)
GLS Aqua Plus
GR150 Series (High Performance)
GR150R Series (High Performance)
GP200 Series (High Performance)
GP200R Series (High Performance)
GLS 400 (Linear)
JB Aqua Series
JB Aqua Plus Series
MXB Series
OLS 200 (Combined Orbital/Linear)
PB1 Transparent
Sub Series
Sub Aqua Series
Sub Aqua Plus Series
XB Series

Want A Quotation?

Please fill out the following fields and we will e-mail you a quotation shortly.

Keison International Ltd. trading as:
Keison Products, VoIPon Solutions & 4Gon
keison VoIPon Solutions 4Gon
