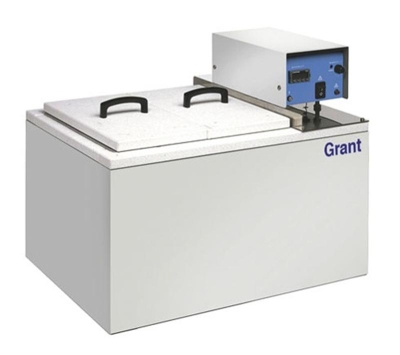

Grant Instruments HED Series High Temperature Baths/Circulators

The HED range is a series of robust baths/circulators for high temperature applications combining electronic control with Grant Instruments's proven circulation system to provide long-term stable, uniform temperature control.

Applications include high temperatur probe calibrations.

  Temperature range 50 to 260 degC
  Timed or continuous operation
  Choice of two tank sizes - 10 litres (HE10D) and 30 litres (HE30D)


  Robust construction for durability and heat efficiency - heavily insulated stainless steel tank in a stove enamelled outer case. Exposed or immersed parts are made from corrosion resistant materials.
  Insulated flat lid to ensure user safety. Model HED30 has a 2-part lid to facilitate access
  Fitted with extra powerful stirrer and a heater with a large surface area to prevent local overheating and deterioration of the oil.
  Digital controller raised to allow for cooling airflow above the tank.
  In-built safety features ensure that the set temperature is not exceeded and that the bath does not operate with too low a level of liquid.
  Optional accessory pump HQ available for external circulation (closed system only) - mounted on lid for convenient fitting and use.

Data Sheet

Ordering Information

High temperature bath and heating circulator 10 litre, 50C to 260C, includes lid HE10D
High temperature bath and heating circulator 30 litre, 50C to 260C, includes lid HE30D

Pump for external closed loop circulation HE10D HQ10
Pump for external closed loop circulation HE30D HQ30
Heating circulator for HE10D UH2D
Heating circulator for HE30D UH3D
Spare tank for HE10D HT10
Spare tank for HE30D HT30

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
