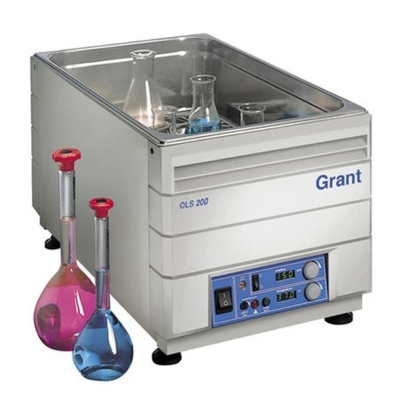

Grant Instruments OLS200 Combined Orbital/Linear Shaking Water Baths

This product is now obsolete. To see the current products by Grant Instruments, please click here.

The Grant Instruments OLS200 orbital/linear shaking bath combines Grant Instruments's high precision temperature control with a robust high quality shaking mechanism that works smoothly and consistently in demanding laboratory applications.

  High quality, robust design with unique magnetically coupled shaking mechanism for maximum reliability, consistency and quiet operation
  Combined linear/orbital shaking bath for supreme flexibility
  Wide range of accessories to provide exactly the right solution for your application
  Precision digital temperature control
  0 degC to 99 degC operating range*
  Stability +/- 0.1 degC
  Adjustable shaking speed and stroke length
  Easy changeover from linear to orbital shaking

*Accessory cooling required for operation below ambient


  Powerful drive mechanism - quiet operation, smooth consistent shaking over a wide speed range
  Unique shaking mechanism allows orbital and linear shaking in one product - simply change the orientation of the shaking tray to change from one mode to the other
  Heater and temperature sensor mounted under tank - large available working area; easy to clean/keep clean
  Individual displays/controls for temperature and shaking speed
  Can be operated below ambient/ to 0 degC with accessory cooling

Data Sheet

Ordering Information

Orbital/linear shaking water bath, digital, 0* to 99°C, includes clear lid N.B. An accessory tray is required, * Operation at or below ambient requires accessory cooling OLS200

Trays and racks

Universal flask tray with springs for OLS200 UT200
Plain tray for OLS200 UTP
Test tube tray for OLS200, holds 5 x H1 racks TT200
Test tube rack H1 for 10mm tubes H1-10
Test tube rack H1 for 13mm tubes H1-13
Test tube rack H1 for 16mm tubes H1-16
Test tube rack H1 for 19mm tubes H1-19
Test tube rack H1 for 25mm tubes H1-25
Test tube rack H1 for 30mm tubes H1-30
Test tube rack H1 for 119 x 0.5ml microcentrifuge tubes H1-SE
Test tube rack H1 for 48 x 1.5ml microcentrifuge tubes H1-LE
Base tray stainless steel perforated for GLS AQUA 18 PLUS, GLS400 and OLS200 SBT28

Gabled lids

Lid gabled stainless steel for GLS400 and OLS200 LS200
Lid gabled polycarbonate clear for GLS AQUA 18 PLUS, OLS200 and GLS400 AQL26

Cooling systems

Refrigerated immersion cooler CS200G
Heat exchange coil for connection to water supply CW200

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
