Grant Instruments QBD/QBH Series Digital Dry Block Heating Systems


The Grant Instruments QBD/QBH series is a versatile range of high quality digital dry block heating systems with excellent temperature control and a wide choice of removable/ interchangeable blocks for maximum flexibility.

The outstanding performance of the QBD/QBH series is based on advanced digital temperature control combined with high quality, precision-engineered blocks providing excellent thermal contact. The result is accurate, reproducible and safe heating of your samples.

There is a full range of models and options to cater for basic through to more sophisticated applications - choose from three digital systems with 1, 2 or 4 interchangeable blocks (QBD models) and one digital high-temperature system (QBH2) with 2 blocks.

These are complemented by a versatile range of interchangeable heating blocks to fit any sample tube you are using for your samples – from our standard range of blocks or tailored to suit your application. In addition, for 2-block systems QBD2 and QBH2 we offer accessory blocks for accommodating microplates and microtube strips.

  Heating range ambient + 5degC to 130degC (all three QBD models) or ambient + 5degC to 200degC (QBH2)
  Rapid heat-up time
  Stability and uniformity +/- 0.1degC
  Integral timer function optional external probe for in-sample or in-block temperature control
  Robust, compact, contemporary design
  Block extraction tool included as standard, for easy and safe removal of blocks

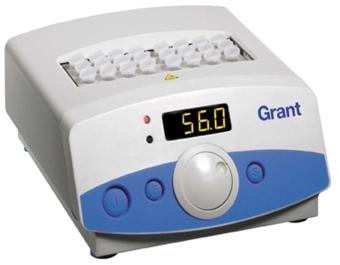

QBD1 - Digital Dry Block Heating System (with single block)

The Grant Instruments QBD1 is a high precision dry block heating system with digital temperature control and a single removable/interchangeable block.

  Digital temperature control for optimum precision
  Heating range ambient + 5degC to 130degC, with rapid heat-up time
  Stability and uniformity +/- 0.1degC
  1-block system (models with 2 blocks and 4 blocks also available)
  Range of convenient programming features

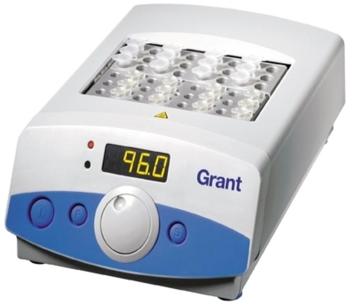

QBD2 - Digital Dry Block Heating System (with two blocks)

The Grant Instruments QBD2 is a versatile, general purpose dry block heating system with two removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications.

  Digital temperature control for optimum precision
  Heating range ambient + 5degC to 130degC, with rapid heat-up time
  Stability and uniformity +/- 0.1degC
  2-block system (models with 1 block and 4 blocks also available)
  Accessory options include microlitre blocks for microplates and strips
  Range of convenient programming features

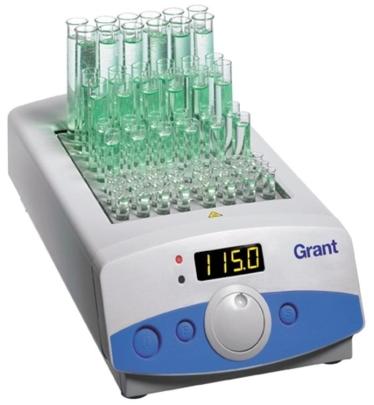

QBD4 - Digital Dry Block Heating System (with four blocks)

The Grant Instruments QBD4 is a versatile, general purpose dry block heating system with four removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications.

  Digital temperature control for optimum precision
  Heating range ambient + 5degC to 130degC, with rapid heat-up time
  Stability and uniformity +/- 0.1degC
  4-block system (models with 1 block and 2 blocks also available)
  Range of convenient programming features

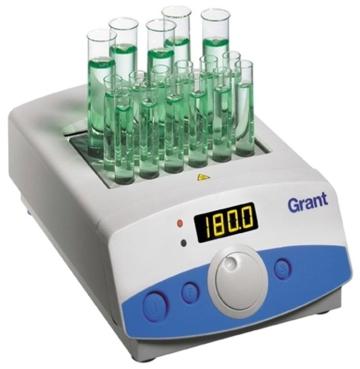

QBH2 Digital Dry Block Heating System (with two blocks, high performance)

The Grant Instruments QBH2 is a programmable high-precision dry block heating system with two removable/interchangeable blocks for applications requiring higher temperatures.

  Digital temperature control for optimum precision
  Heating range ambient + 5degC to 200degC*, with rapid heat-up time
  Stability and uniformity +/- 0.1degC
  Programmable


Data Sheet



Ordering Information


DIGITAL DRY BLOCK HEATERS

Dry block heater digital ambient +5 to 130C holds 1 interchangeable block QBD1
Dry block heater digital ambient +5 to 130C holds 2 interchangeable blocks QBD2
Dry block heater digital ambient +5 to 130C holds 4 interchangeable blocks QBD4

HIGH PERFORMANCE DRY BLOCK HEATER

Dry block heater digital ambient +5 to 200C holds 2 interchangeable blocks QBH2

Interchangeable blocks

Interchangeable block for QBA, QBD, QBH plain block QB-0
Interchangeable block for QBA, QBD, QBH for 24 x 10mm test tubes QB-10
Interchangeable block for QBA, QBD, QBH for 24 x 12mm test tubes QB-12
Interchangeable block for QBA, QBD, QBH for 12 x 13mm test tubes QB-13
Interchangeable block for QBA, QBD, QBH for 12 x 16mm test tubes QB-16
Interchangeable block for QBA, QBD, QBH extra deep block, for 10 x 17mm Falcon tubes, holes 75mm deep QB-17H
Interchangeable block for QBA, QBD, QBH for 12 x 18mm test tubes QB-18
Interchangeable block for QBA, QBD, QBH for 5 x 24mm tubes & disposable universal bottles QB-24
Interchangeable block for QBA, QBD, QBH for 4 x 29 mm 50ml non-skirted centrifuge tubes & glass universal bottles QB-50
Interchangeable block for QBA, QBD, QBH for 56 x 0.2ml microtubes or 7 x PCR strips QB-H
Interchangeable block for QBA, QBD, QBH for 24 x 0.5ml microcentrifuge tubes QB-E0
Interchangeable block for QBA, QBD, QBH for 24 x 1.5ml microcentrifuge tubes QB-E1
Interchangeable block for QBA, QBD, QBH for 24 x 2.0ml microcentrifuge tubes QB-E2
Interchangeable block for QBA, QBD, QBH for 24 x 11.13mm to 6.1mm dolphin nose tubes QB-DN
Interchangeable block for 96-well plates, complete with lid; for use only in QBA2, QBD2 QDP-FL
Interchangeable block for 0.2ml tubes, strips, 96-well plates; for use only in QBA2, QBD2 QDP-H

External probes

External probe for QBD and QBH QBEP
External probe for QBD and QBH short-form QBEP-WM

Safety cover

Safety cover transparent polycarbonate for QBA1, QDB1 QBL1
Safety cover transparent polycarbonate for QBA2, QBD2, QBH2 QBL2
Safety cover transparent polycarbonate for QBD4 QBL4



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
