Grant Squirrel SQ2020 Wi-Fi Data Logger

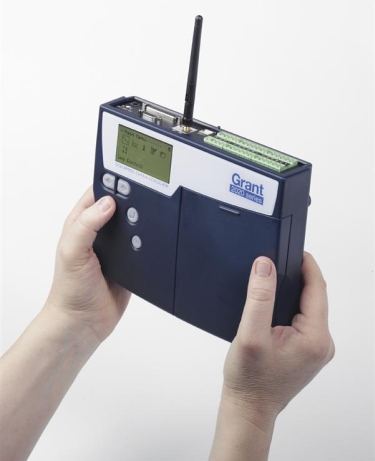

The Squirrel 2020 Wi-Fi hand held data logger combines high performance and universal inputs with the simplicity of Wi-Fi networking in a compact and easy-to-use instrument.

Using high accuracy, 24-bit analogue to digital converters, removable memory and wireless Ethernet (Wi-Fi) networking, the SQ2020 Wi-Fi is the ideal data logger for industrial, scientific research and quality assurance applications.

Together with our comprehensive suite of software, SquirrelView, the SQ2020 provides standalone data acquisition, simple Wi-Fi networking, real-time metering and data analyses straight out-of-the-box.

Key Features

  Fully configurable via the integrated keypad
  8 true differential or 16 single ended universal analogue inputs for voltage, current or resistance measurements plus 2 high voltage, 4 pulse and 8 digital event/state inputs
  Analogue inputs can be used with thermistors, thermocouples, 2,3 or 4 wire RTD temperature sensors and 4-20mA signals
  Logging rates of up to 100Hz on up to 2 channels
  Standard (802.11b) wireless Ethernet (Wi-Fi) networking, USB and RS232 communication ports
  Large non-volatile internal memory storage for up to 14 million readings
  Download of internal data to removable MMC / SD card
  Sensor power and FET outputs for use with external devices
  Clear 128*68 dot graphical LCD display

Analogue inputs supported

  Thermistors
  Thermocouples
  Pt100 / Pt1000 (maximum of four 3- or 4-wire Pt100 / Pt1000 sensors)
  Voltage
  Current
  Resistance


Data Sheet
Getting Started Guide

Communications - Wi-Fi, USB and RS232 serial ports are inbuilt. This allows simple connection to either a PC based TCP/IP network, a wireless to PC connection or to a GSM modem for remote data downloading. This flexibility enables global data access and retrieval as well as complete system integration of the SQ2020 2F8 into complex and critical applications.

Multiple configurations stored in the logger - Up to six logger configurations ( channel type, names, logging speeds, triggers etc.) together with the current configuration can be held in the logger`s internal memory. Additional configuration settings can also be loaded from the external MMC/SD memory card. This allows the operator to quickly and easily switch between logger configurations without the need for a PC.

Software configuration via SquirrelView - The SquirrelView software (supplied with the SQ2020 Wi-Fi data logger) allows logger configuration, data download and export whilst giving the user full control over SQ2020. The optional SquirrelView Plus gives the used access to many advanced data analyses and archiving/transfer features. Refer to SquirrelView data sheet for specifications.

Concurrent sampling - The SQ2020 2F8 uses multiple analogue and digital converters that enables true concurrent sampling and logging. It Allows the user to configure a channel to log at a rate of 100Hz whilst retaining different sample speeds on the other channels. Ideal for measuring dynamic parameters that change at different rates such as temperature and pressure.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
