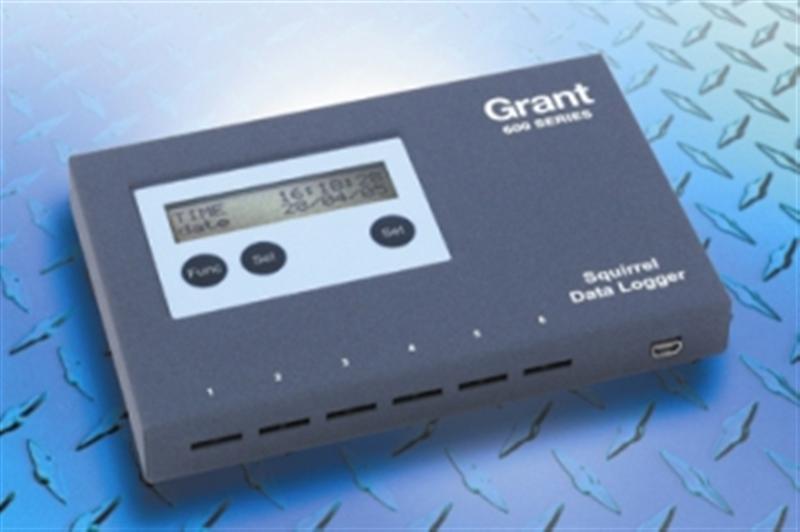

Grant Squirrel OQ610 Temperature Logger


Building on over 40 years experience in temperature monitoring, the Grant Squirrel OQ610 Logger is easy to use, more affordable, and offers greater flexibility for measuring temperature.

The OQ610 can start recording or print results at the touch of a button, and with SquirrelView software can be configured to your precise requirements.

  6 channel temperature logger for use with a wide range of K or T type thermocouple probes offers greater flexibility and a quick response
  Battery operated and easily portable
  Simple 3 button operation via built in display or from PC
  Can be configured to automatically start and stop logging on time or temperature levels
  Fast sample rates for fast process times; up to 8 samples/second and, if required, can provide automatic cure calculation in through process applications
  Non-volatile memory provides up to 260,000 readings of secure data
  Time and date reported with each reading
  USB communication port


Data Sheet

Flexibility in temperature monitoring: Suitable for a wide range of temperature recording applications in industry, research & development.

Simple to use:: Power up the logger, connect your thermocouples and conduct your tests. The logger automatically detects when sensors are present making setup easy.

Small in size:: The OQ610 is small and compact, making it suitable for use in a variety of applications, thus offering complete flexibility.

Simple record keeping:: With the touch of a button, the OQ610 can directly print user-configurable, concise reports to simplify record keeping and provide ISO 9000 quality records. USB communications enables direct printout without the need to connect to a PC.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
