HomeLaboratorypH/Conductivity Meters › HI-3222-02 CalCheck pH/mV/ISE/Temperature Bench Meter

HI-3222-02 CalCheck pH/mV/ISE/Temperature Bench Meter

The Hanna HI 3222 professional bench meter is designed to provide laboratory results under harsh industrial conditions.

The HI 3222-02 meter features up to 5 point calibration with a choice of 5 custom and 7 standard buffers. Users are guided through calibration with graphic prompts on the LCD display. These advanced meters also feature a user selectable ?Outside Calibration? warning as well as a user selectable ?Calibration Time-out? warning.

This meter is provided with a new diagnostic feature to allow users to dramatically improve measurement reliability. Calibration Check? diagnostics system ensures accurate readings every time by alerting users of potential problems during the calibration process.

These problems include whether to clean the electrode or check your buffer. After calibration, a probe condition indicater is displayed on the LCD informing the user of overall electrode status.

The HI 3222 is equipped with 2 input channels for simultaneous measurements. Having these 2 channels eliminates the need for swapping probes and recalibrating.

It also offers an extended temperature range from -20 to 120°C (-4 to 248°F), using HI 7662-T interchangeable probes and measure ORP with a resolution of 0.1 mV.

The HI 3222 can use ISE electrodes, and provides a choice of measurement units (ppb, ppm, molarity, weight/volume %). The electrode type and unit selection capability and the ISE calibration in up to five calibration standard solutions make this instrument very useful for a large range of concentration solutions measurements.

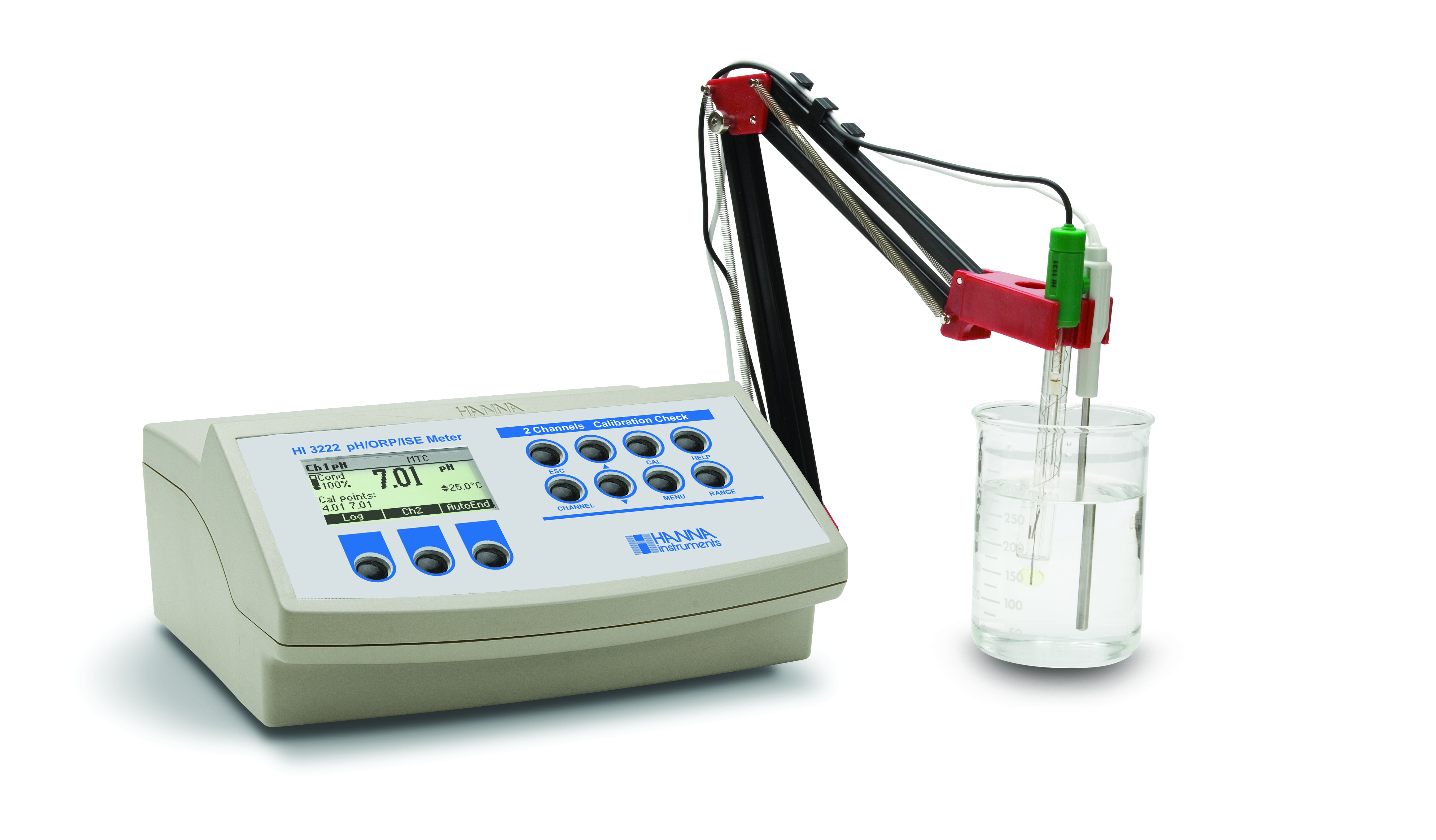

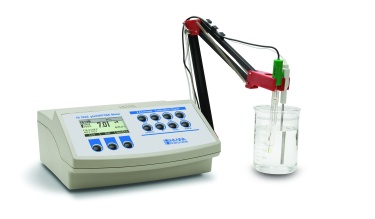

Click on the photo for a high-resolution version.

The HI 3222 is supplied with HI 1131B pH electrode with BNC connector and 1 m cable, HI 7662-T stainless steel temperature probe, pH 4 and pH 7 buffer solutions, cleaning solution, electrolyte solution, 12 Vdc power adapter and instructions.

  Two input channels
  Backlit, Graphic LCD
  Exclusive Calibration Check Electrode Diagnostics to alert the user when the electrode needs cleaning.
  Prompts and messages on the graphic LCD for an easy and accurate calibration.
  5 point calibration with 7 standard and 5 custom buffers
  Relative mV measurements
  Log on demand for up to 400 samples
  Auto HOLD to freeze readings on the display
  GLP to view last calibration data for pH, Rel mV or ISE
  User selectable "Outside Calibration Range" warning.
  User-selectable "calibration time out" to remind when a new calibration is necessary.
  PC compatible via USB


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
