Hawker Electronics - Type E13A Multi-Electrode Holder


For use with all level controllers and alarms operating in aqueous (conducting) liquids i.e. water, acids, chemical effluent, beverages etc.


  Spacer saver
  Accommodates up to 5 electrodes
  Universal flange fitting
  Corrosion resistant
  Intrinsically safe and pressure tight version available
  Electrodes available for most aggressive liquids, (i.e. PPA* coated stainless steel, titanium, monel, hastelloy C)

PPA* plastic coating WRAS No 0107503

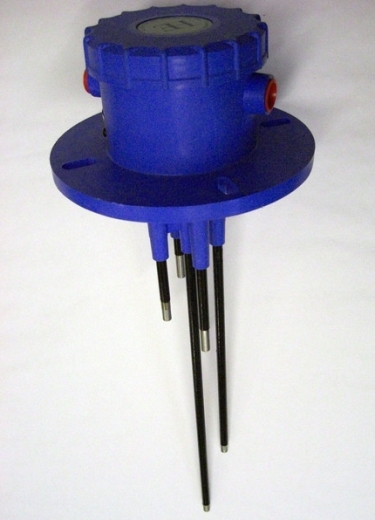

The Hawker multi electrode holder is moulded in tough glass filled polypropylene and accommodates up to 5 plastic coated 8mm electrodes up to 3m long (longer lengths are available via threaded couplers), it is ideal for water tanks, chemical storage tanks and bunds.

5 electrodes enable the E13A to be used for pump control with high and low alarms.

Use centre hole for earth electrodes.

Mounting (type 81/MS or 81/SS) and steady (type 218/SS) brackets and separators (type 214) etc are available.

Always use the well proven, AC or P3/P4 series controllers incorporating CSD circuitry.


Downloads


Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
