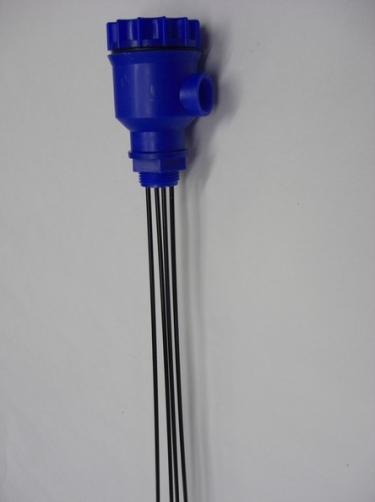

Hawker Electronics - Type E14 Light Duty Multi-Electrode Holder


Electrode Holders for Conductivity Type Systems


The E14 is available in 2, 3 or 4 way versions to accommodate up to four 3.2mm diameter electrodes.

The body is moulded in polypropylene with a screw on cap.

The mounting thread is B.S.P. parallel. In addition, a lock nut is provided.

The screwed conduit entry is 20mm diameter. Electrodes (other than hastelloy) are plastic coated to prevent tracking.

For applications where excessive moisture is present, a recessed headed version is available and it is possible to have cable connected at works and the terminals potted.

Two spacers are included to separate the electrodes.

For use at normal atmospheric pressure and temperatures between -200C and +600C not suitable for aggressive liquids which attack polypropylene.

Intrinsically Safe Models are available for use with P7/IS level controller (Type Ref 1GOHPE14/IS).


Downloads


Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
